General Description
>>
Components With Torque Specifications
>>
Radar Sensor

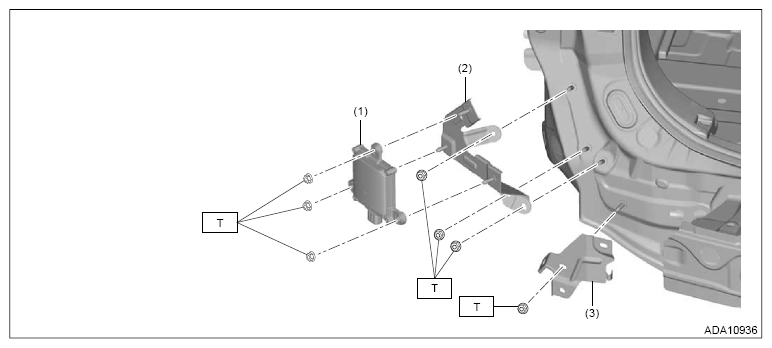

Radar Sensor
Courtesy of SUBARU OF AMERICA, INC.
(1)
Radar sensor (master & slave)
(2)
Radar bracket
(3)
Bracket skirt
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
Courtesy of SUBARU OF AMERICA, INC.
