Lift And Jack: Lift

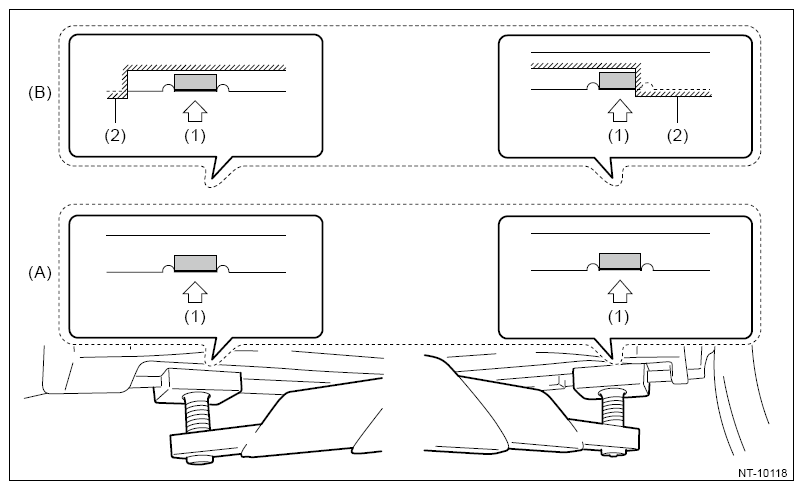

G16340228Courtesy of SUBARU OF AMERICA, INC.
(A) Model without side spoiler or side garnish
(B) Model with side spoiler or side garnish
(1) Jack-up point
(2) Side spoiler or side garnish
CAUTION: For models with spoiler garnish, use a spacer or an attachment to lift up the vehicle securely at jack up point without the side garnish contacting the lift.
