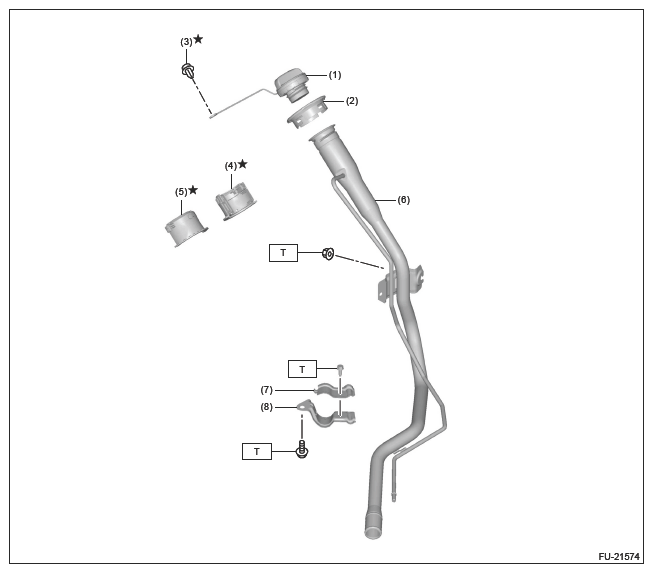

Fuel Filler Pipe
 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
Fuel filler cap |
| (2) |
Fuel filler pipe protector |
| (3) |
Clip |
| (4) |
Neck holder A |
| (5) |
Neck holder B |
| (6) |
Fuel filler pipe |
| (7) |
Upper bracket |
| (8) |
Lower bracket |
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
