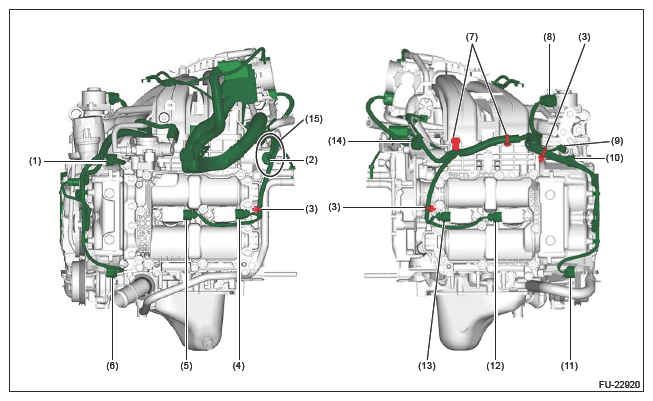

| (1) |
Intake camshaft position sensor connector LH |
| (2) |
Tumble generator valve actuator connector LH |
| (3) |
Secure the clip to the screw hole. |
| (4) |
Ignition coil connector (#4) |
| (5) |
Ignition coil connector (#2) |
| (6) |
Exhaust camshaft position sensor connector LH |
| (7) |
Secure a clip to the intake manifold assembly. |
| (8) |
EGR control valve connector |
| (9) |
EGR temperature sensor (after connecting the connector, press it in at the double-lock part) |
| (10) |
Intake camshaft position sensor connector RH |
| (11) |
Exhaust camshaft position sensor connector RH |
| (12) |
Ignition coil connector (#1) |
| (13) |
Ignition coil connector (#3) |
| (14) |
Tumble generator valve actuator connector RH |
| (15) |
Route through the vehicle rear side of the tumble generator valve actuator connector RH. |
