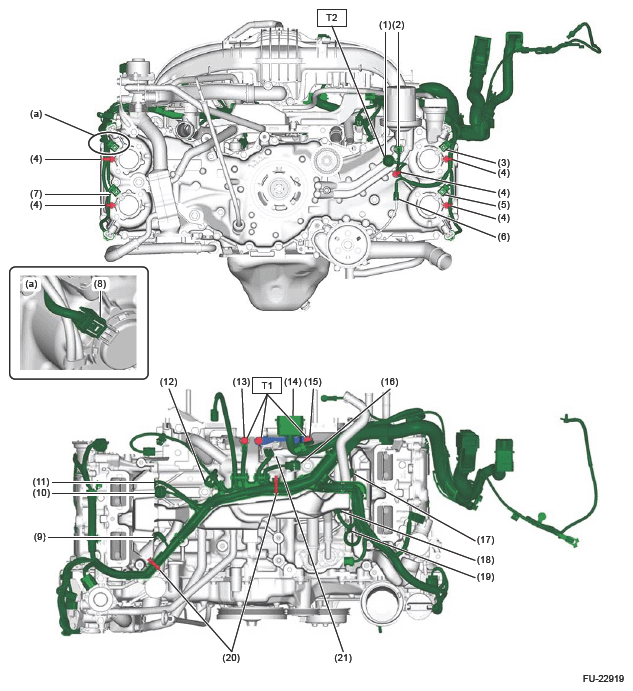

Structural Diagram 2
| (1) | Oil pressure switch (Refer to "Oil Pressure Switch" of "LUBRICATION" for installation . Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PRESSURE SWITCH>INSTALLATION.) |
| (2) | Engine oil temperature sensor connector |
| (3) | Intake oil control solenoid connector LH |
| (4) | Secure the clip to the screw hole. |
| (5) | Exhaust oil control solenoid connector LH |
| (6) | Oil level switch connector |
| (7) | Exhaust oil control solenoid connector RH |
| (8) | Intake oil control solenoid connector RH (Route the harness for the exhaust oil control solenoid connector RH from the outside of the engine toward the inside, so that the harness does not protrude outward.) |
| (9) | Fuel injector connector (#1) |
| (10) | Fuel pressure sensor connector |
| (11) | Fuel injector connector (#3) |
| (12) | Knock sensor connector RH side |
| (13) | Engine ground |
| (14) | CVT docking connector |
| (15) | Engine wiring harness stay |
| (16) | Knock sensor connector LH side |
| (17) | Fuel injector connector (#4) |
| (18) | Engine coolant temperature sensor connector |
| (19) | Fuel injector connector (#2) |
| (20) | Secure the clip to the water pipe assembly. |
| (21) | Crankshaft position sensor |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 19 (1.9, 14.0)
T2: Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PRESSURE SWITCH>INSTALLATION .
