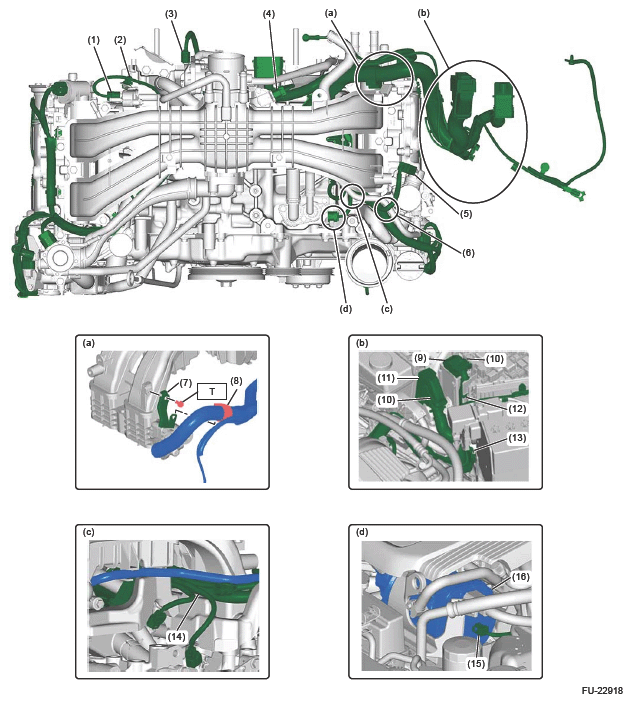

Structural Diagram 1
| (1) | Purge control solenoid valve connector |
| (2) | Secure the clip to the purge control solenoid valve bracket. |
| (3) | Throttle position sensor connector |
| (4) | Manifold absolute pressure sensor connector |
| (5) | High-pressure fuel pump connector |
| (6) | Route the engine wiring harness above the fuel delivery pipe. |
| (7) | Harness stay |
| (8) | Clip (securely press in the clip to the harness stay) |
| (9) | M/B connector |
| (10) | Push in the lock lever securely. |
| (11) | ECM connector (For installation and removal, refer to "Engine Control Module (ECM)". Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (HEV))>Engine Control Module (ECM)>INSTALLATION) . |
| (12) | Secure the harness to the clip. |
| (13) | Secure the harness case to the bracket. |
| (14) | Route the engine wiring harness under the fuel delivery pipe. |
| (15) | Electric compressor ASSY connector |
| (16) | Electric compressor ASSY |
Tightening torque: N.m (kgf-m, ft-lb)
T: 6.4 (0.7, 4.7)
