Fuel Tank Protector
>>
Removal
>>
Fuel Tank Protector
Fuel Tank Protector
Lift up the vehicle.

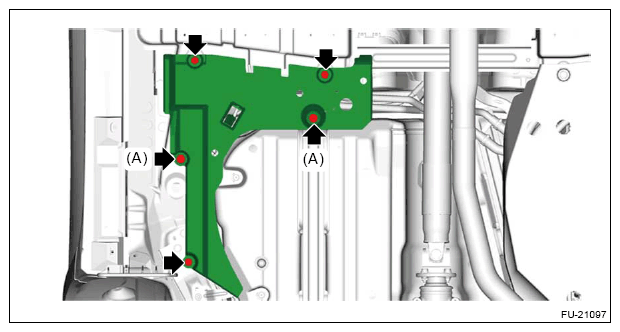

Remove the bolt and clip (A) and remove the fuel tank protector.
Courtesy of SUBARU OF AMERICA, INC.
