Operating Cylinder

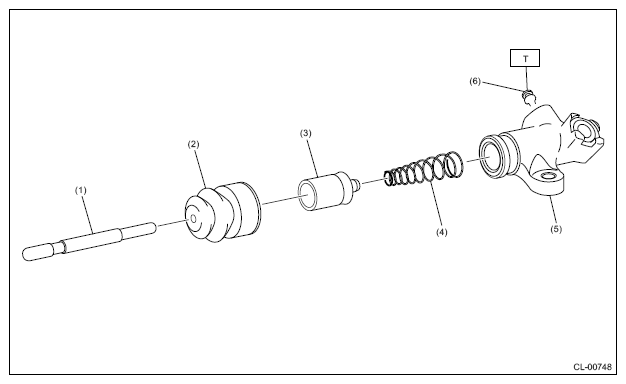

G16341367Courtesy of SUBARU OF AMERICA, INC.
(1) Push rod
(2) Boot
(3) PISTON
(4) Piston spring
(5) OPERATING CYLINDER
(6) Bleeder screw

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.8 (0.8, 5.8)
