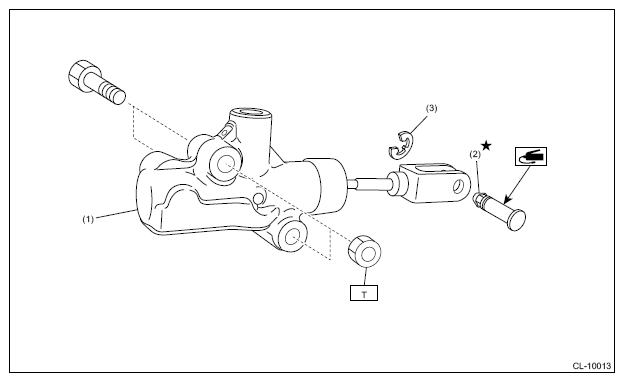

Master Cylinder
Courtesy of SUBARU OF AMERICA, INC.
(1)
Master cylinder ASSY
(2)
Clevis pin
(3)
Clip
Tightening torque: N.m (kgf-m, ft-lb)
T: 18 (1.8, 13.3)
Courtesy of SUBARU OF AMERICA, INC.
