Automatic Transaxle System (Diagnostics) (CROSSTREK): Electrical Component Location: Location

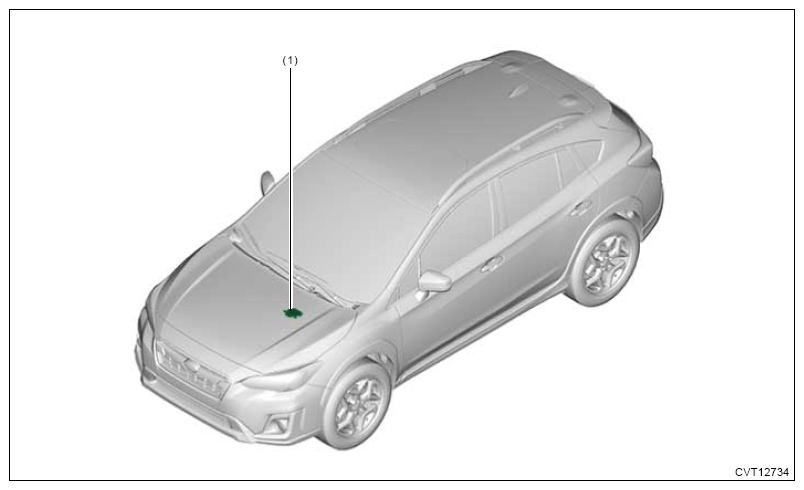

Courtesy of SUBARU OF AMERICA, INC.

(1)

TCM

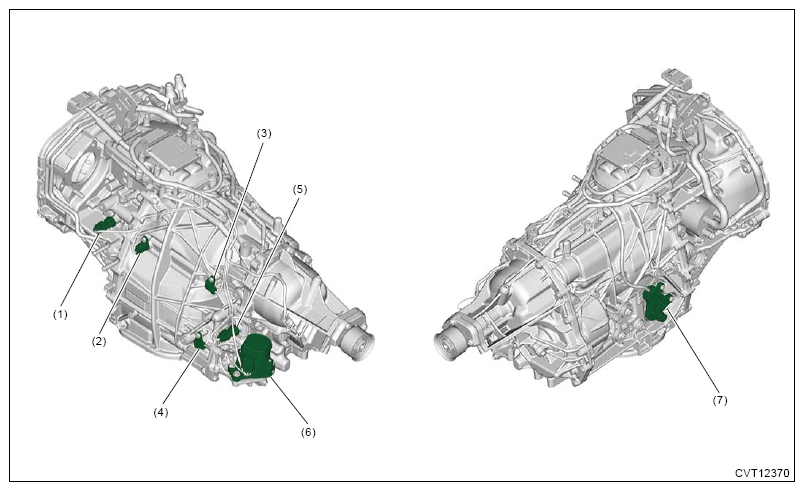

Courtesy of SUBARU OF AMERICA, INC.

(1)	Line pressure sensor
(2)	Turbine speed sensor
(3)	Primary speed sensor
(4)	Secondary speed sensor
(5)	Secondary pressure sensor
(6)	Electric oil pump
(7)	Inhibitor switch
