Front Strut

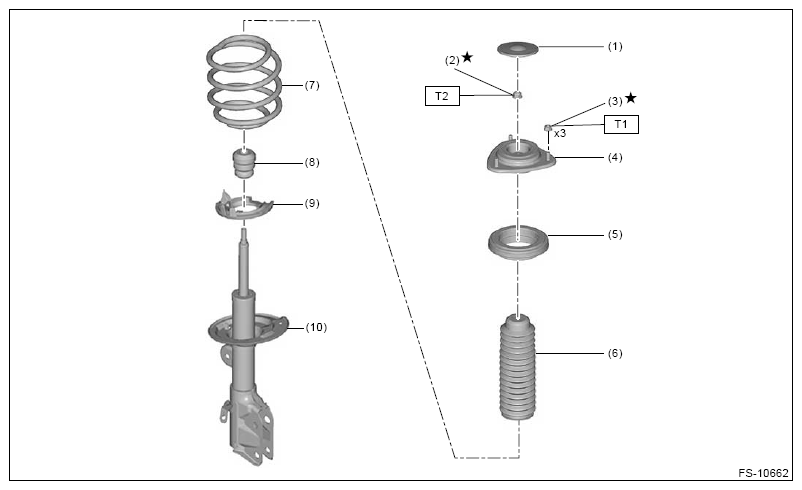

• Impreza model

  Courtesy of SUBARU OF AMERICA, INC.

  (1)	Dust seal - front strut
  (2)	Self-locking nut
  (3)	Flange nut
  (4)	Strut mount - front
  (5)	Strut bearing - front
  (6)	Dust cover - front strut
  (7)	Coil spring - front
  (8)	Helper - front strut
  (9)	Rubber seat LWR
  (10)	Strut COMPL - front

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 32 (3.3, 23.6)

  T2: 55 (5.6, 40.6)

• Crosstrek model

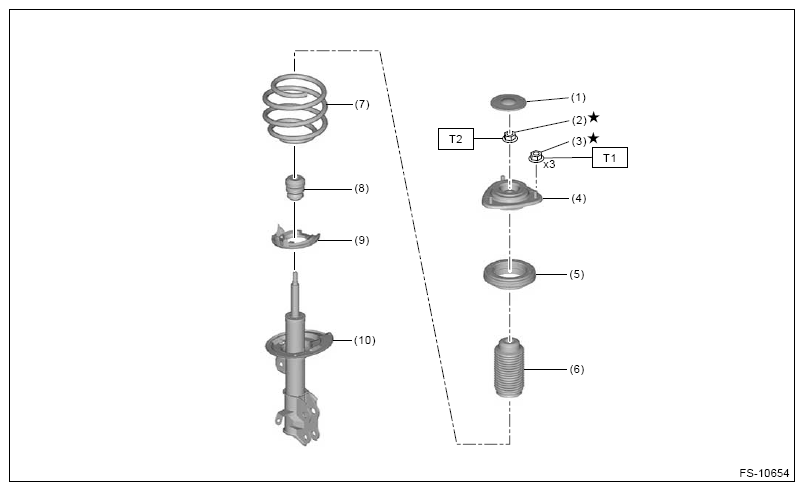

Fig 1: Front Strut Component Location - Crosstrek Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 32 (3.3, 23.6)

T2: 55 (5.6, 40.6)
