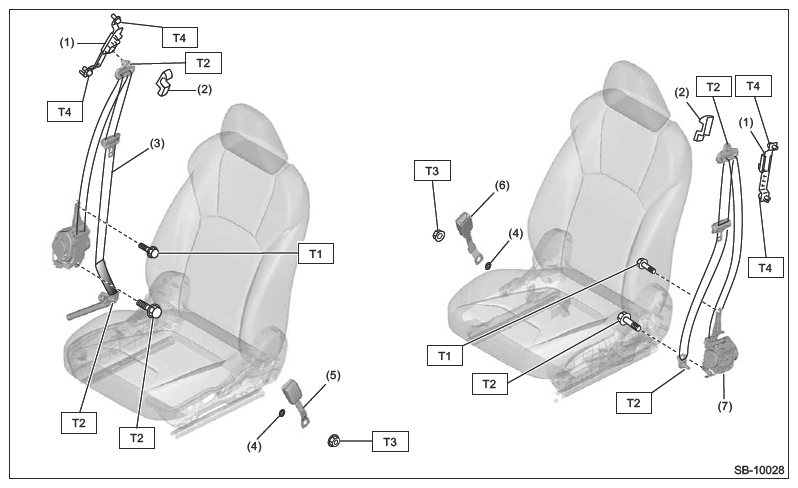

Front Seat Belt

Courtesy of SUBARU OF AMERICA, INC.

(1)

Adjuster ASSY - seat belt

(2)

Cover through

(3)

Seat belt outer - front RH (only on passenger's side with lap seat belt pretensioner)

(4)

Wave washer

(5)

Seat belt inner - front RH⁽¹⁾

(6)

Seat belt inner - front LH⁽¹⁾

(7)

Seat belt outer - front LH

⁽¹⁾	Apply grease when replacing the seat belt inner - front. Ref. to SEAT BELT SYSTEM>FRONT SEAT BELT>INSTALLATION>SEAT BELT INNER - FRONT .

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 30 (3.1, 22.1)

T3: 38 (3.9, 28.0)

T4: 53 (5.4, 39.1)
