Identification Number & Label Locations

The V.I.N. (Vehicle Identification Numbers) is used to classify the vehicle.

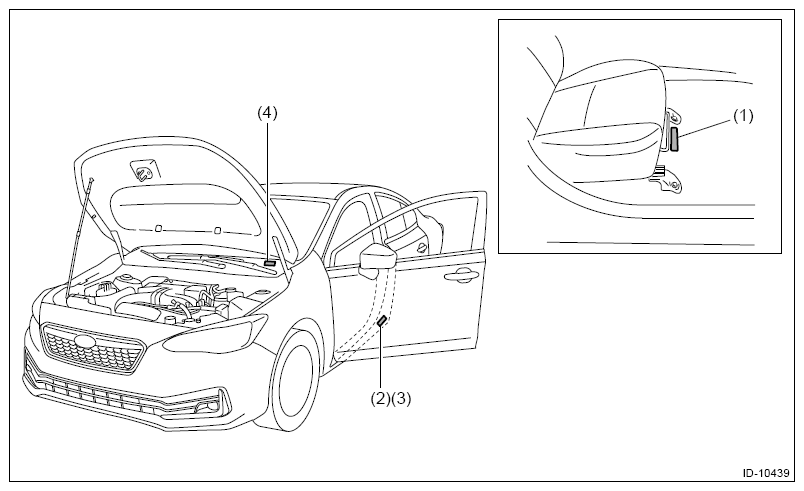

• Positioning of the label for identification

  Courtesy of SUBARU OF AMERICA, INC.

  (1)	VIN (Vehicle Identification Number) (below right front floor carpet) (Crosstrek model)
  (2)	FMVSS or CMVSS label (attached to left side of vehicle)
  (3)	Model number label (attached to right side of vehicle)
  (4)	VIN plate

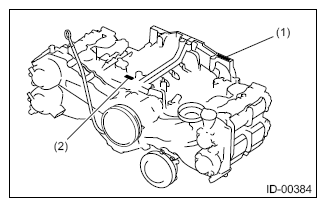

• Engine

  Courtesy of SUBARU OF AMERICA, INC.

  (1)	Engine serial No.
  (2)	Engine type (crankcase upper side)

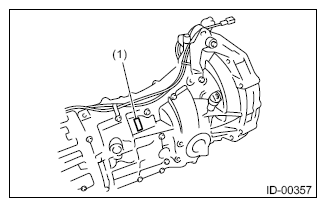

• Manual transmission

  5MT

  Courtesy of SUBARU OF AMERICA, INC.

  (1)	MT type and transmission serial No. label

  6MT

  Courtesy of SUBARU OF AMERICA, INC.

  (1)	MT type and transmission serial No. label

• Automatic transmission

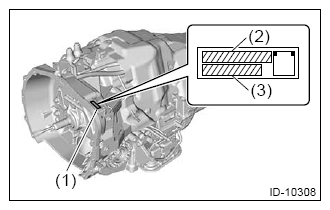

  CVT (TR580)

  Courtesy of SUBARU OF AMERICA, INC.

  (1)	Label
  (2)	CVT type
  (3)	Transmission serial No.

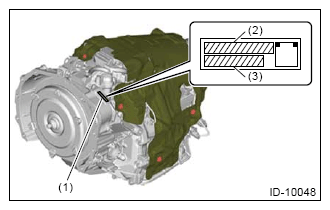

  Continuously variable transmission (TH2A)

  Courtesy of SUBARU OF AMERICA, INC.

  (1)	Label
  (2)	CVT type
  (3)	Transmission serial No.

• Rear differential

  VA1-type

  Courtesy of SUBARU OF AMERICA, INC.

  (1)	Label
  (2)	Rear differential serial No.
  (3)	Rear differential identification

  VB3-type

  Courtesy of SUBARU OF AMERICA, INC.

  (1)	Label
  (2)	Rear differential serial No.
  (3)	Rear differential identification

• FMVSS label (Impreza model)

  For U.S.A.

  Courtesy of SUBARU OF AMERICA, INC.

• FMVSS label (Crosstrek model)

  For U.S.A.

  Courtesy of SUBARU OF AMERICA, INC.

• CMVSS label (Impreza model)

  For Canada

  Courtesy of SUBARU OF AMERICA, INC.

• CMVSS label (Crosstrek model)

  For Canada

  Courtesy of SUBARU OF AMERICA, INC.

• Model number label

  Courtesy of SUBARU OF AMERICA, INC.
