AWD Control Module

WARNING: This page is about a different variant/trim than selected.

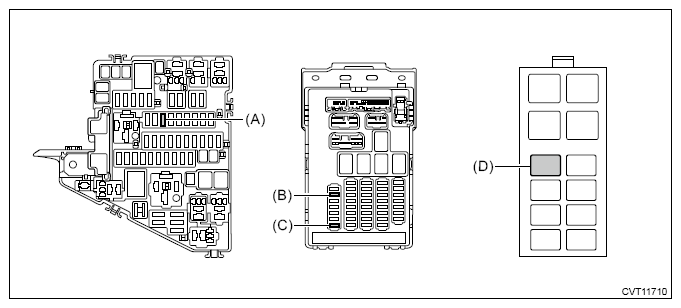

G16347526Courtesy of SUBARU OF AMERICA, INC.
(A) MB - B fuse (10 A)
(B) IG - B1 fuse (7.5 A)
(C) Unit + B3 fuse (10 A)
(D) AWD relay
