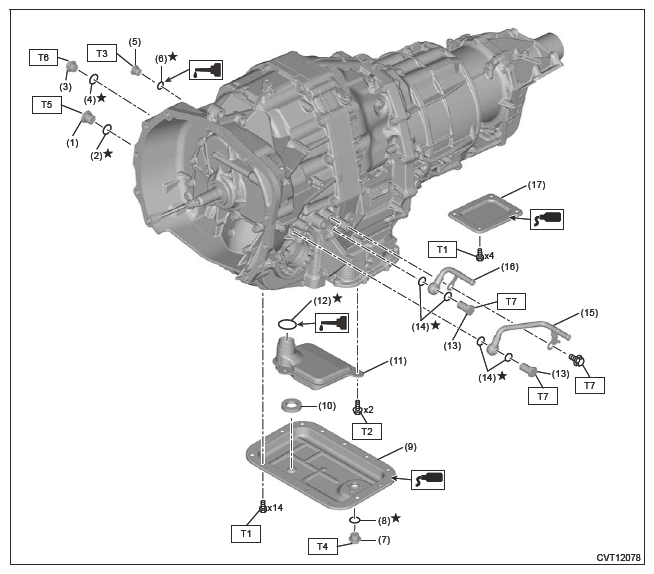

Components With Torque Specifications: Transmission
WARNING: This page is about a different variant/trim than selected.
| (1) | Filler plug |
| (2) | Gasket |
| (3) | Overflow plug |
| (4) | Gasket |
| (5) | Test plug (line pressure) |
| (6) | O-ring |
| (7) | Drain plug |
| (8) | Gasket |
| (9) | Oil pan |
| (10) | Magnet |
| (11) | Oil strainer |
| (12) | O-ring |
| (13) | Union bolt |
| (14) | Gasket |
| (15) | CVTF outlet pipe |
| (16) | CVTF inlet pipe |
| (17) | Power connect cover |
Tightening torque: (kgf-m, ft-lb)
T1: 5 (0.5, 3.7)
T2: 9 (0.9, 6.6)
T3: 22 (2.2, 16.2)
T4: 31 (3.2, 22.9)
T5: 35 (3.6, 25.8)
T6: 50 (5.1, 36.9)
T7: Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TH2A)>CVTF COOLER PIPE AND HOSE>INSTALLATION>CVTF INLET PIPE AND CVTF OUTLET PIPE .
