Master Cylinder: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the master cylinder.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

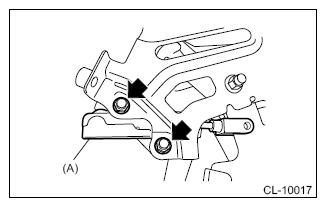

    G16341405Courtesy of SUBARU OF AMERICA, INC.
    (A) MASTER CYLINDER
  2. Tighten the clutch pipe.

    Tightening torque:

    15.5 N.m (1.6 kgf-m, 11.4 ft-lb)

    G11256384Courtesy of SUBARU OF AMERICA, INC.
  3. Install the push rod of the master cylinder, and install the clevis pin and clip.
    CAUTION: Always use a new clevis pin.
    NOTE: Apply grease to the clevis pin.

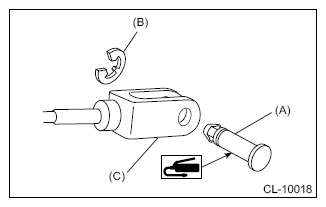

    G16341407Courtesy of SUBARU OF AMERICA, INC.
    (A) Clevis pin
    (B) Clip
    (C) Push rod
  4. Install the clutch pedal assembly. Ref. to CLUTCH SYSTEM>CLUTCH PEDAL>INSTALLATION .
  5. Install the steering column. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>INSTALLATION .
  6. Add the recommended brake fluid. Ref. to CLUTCH SYSTEM>CLUTCH FLUID .
  7. After bleeding air from the clutch system, ensure that no fluid leaks and the clutch operates properly. Ref. to CLUTCH SYSTEM>CLUTCH FLUID AIR BLEEDING .
  8. Install the instrument panel lower cover. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>INSTALLATION .
  9. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
