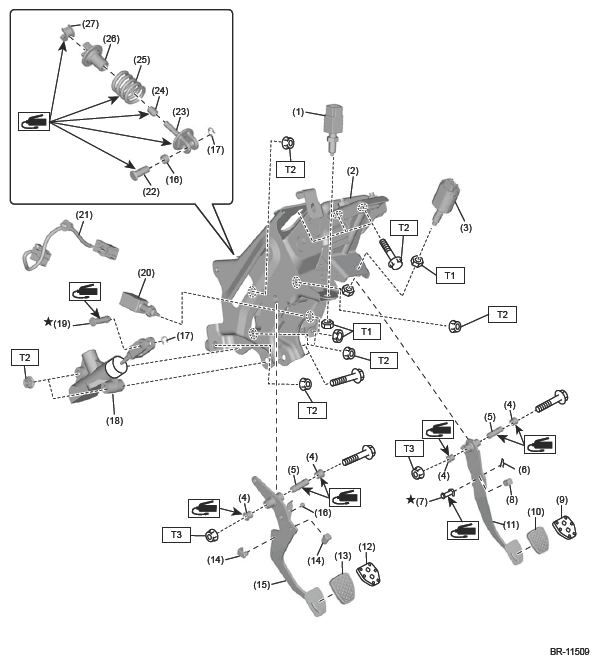

Clutch Pedal Assembly
WARNING: This page is about a different variant/trim than selected.
| (1) | CLUTCH SWITCH |
| (2) | Pedal bracket |
| (3) | Stop light switch |
| (4) | Pedal bushing |
| (5) | Spacer |
| (6) | Snap pin |
| (7) | Clevis pin |
| (8) | Brake pedal stopper |
| (9) | Brake pedal pad (sport type) |
| (10) | Brake pedal pad (normal type) |
| (11) | Brake pedal |
| (12) | Clutch pedal pad (sport type) |
| (13) | Clutch pedal pad (normal type) |
| (14) | Clutch pedal stopper |
| (15) | CLUTCH PEDAL |
| (16) | Bushing A |
| (17) | Clip |
| (18) | Master cylinder ASSY |
| (19) | Clevis pin |
| (20) | Clutch start switch |
| (21) | Harness connector |
| (22) | Assist pin |
| (23) | Assist rod A |
| (24) | Assist bushing A |
| (25) | Assist spring |
| (26) | Assist rod B |
| (27) | Assist bushing B |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 8 (0.8, 5.9)
T2: 18 (1.8, 13.3)
T3: 30 (3.1, 22.1)
