Inverter Cooling System
WARNING: This page is about a different variant/trim than selected.

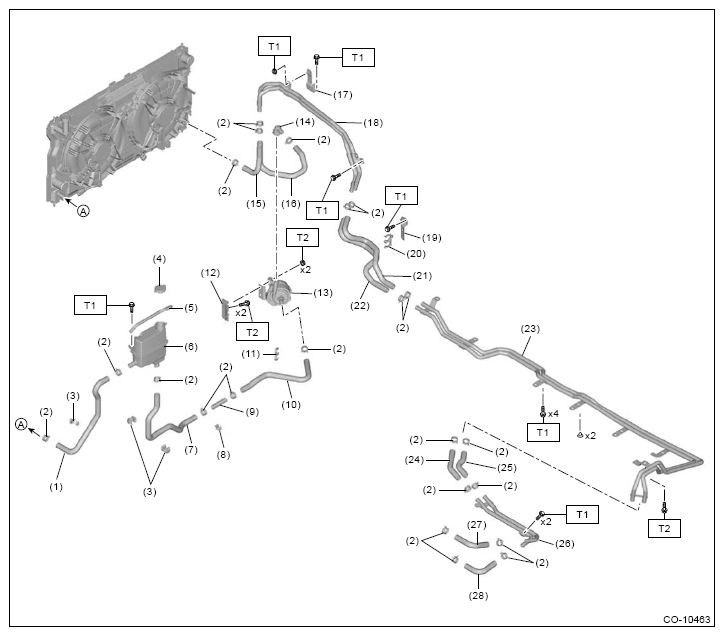

| (1) | Inverter radiator outlet hose |
| (2) | Clip |
| (3) | Clamp |
| (4) | Inverter tank cap |
| (5) | Over flow hose |
| (6) | Inverter tank |
| (7) | Inverter tank outlet hose |
| (8) | Clamp |
| (9) | Water pipe |
| (10) | Inverter water pump inlet hose |
| (11) | Clamp |
| (12) | Bracket |
| (13) | Inverter water pump |
| (14) | Quick connector |
| (15) | Inverter radiator inlet hose |
| (16) | Inverter water pump outlet hose |
| (17) | Bracket |
| (18) | Inverter front water pipe |
| (19) | Bracket |
| (20) | Clamp |
| (21) | Inverter center water pipe inlet hose |
| (22) | Inverter center water pipe outlet hose |
| (23) | Inverter center water pipe |
| (24) | Inverter rear water pipe inlet hose |
| (25) | Inverter rear water pipe outlet hose |
| (26) | Inverter rear water pipe |
| (27) | Inverter outlet hose |
| (28) | Inverter inlet hose |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 18 (1.8, 13.3)
