Cylinder Block 2

2.0 L model

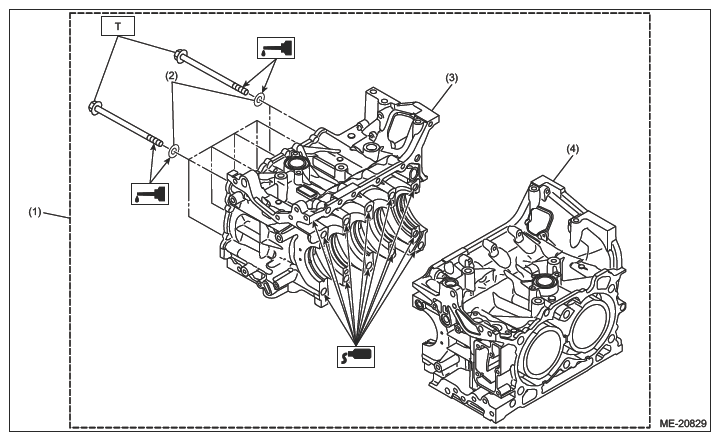

G16346072

Courtesy of SUBARU OF AMERICA, INC.

(1)	Cylinder block ASSY
(2)	Washer
(3)	Cylinder block RH
(4)	Cylinder block LH

Tightening torque: N.m (kgf-m, ft-lb)

T: Ref. to MECHANICAL (H4DO (EXCEPT FOR HEV))>CYLINDER BLOCK>INSTALLATION .

2.5 L model

G16346073

Courtesy of SUBARU OF AMERICA, INC.

(1)	Cylinder block ASSY
(2)	Washer
(3)	Cylinder block RH
(4)	Cylinder block LH

Tightening torque: N.m (kgf-m, ft-lb)

T: Ref. to MECHANICAL (H4DO (EXCEPT FOR HEV))>CYLINDER BLOCK>INSTALLATION .
