Cylinder Block 1
- 2.0 L model

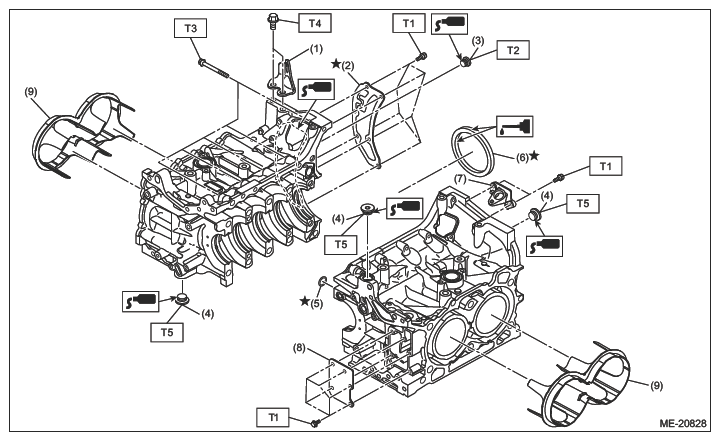

(1) Engine rear hanger (2) Oil separator cover (3) Cylinder block plug (4) Main gallery plug (5) O-ring (6) Rear oil seal (7) Crankshaft position sensor holder (8) Cylinder block plate (9) Water jacket spacer Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 16 (1.6, 11.8)
T3: 25 (2.5, 18.4)
T4: 36 (3.7, 26.6)
TS: Ref. to MECHANICAL (H4DO (EXCEPT FOR HEV))>CYLINDER BLOCK>ASSEMBLY>CYLINDER BLOCK .
- 2.5 L model
(1) Engine rear hanger (2) Oil separator cover (3) Cylinder block plug (4) Main gallery plug (5) O-ring (6) Rear oil seal (7) Crankshaft position sensor holder (8) Cylinder block plate Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 16 (1.6, 11.8)
T3: 25 (2.5, 18.4)
T4: 36 (3.7, 26.6)
TS: Ref. to MECHANICAL (H4DO (EXCEPT FOR HEV))>CYLINDER BLOCK>ASSEMBLY>CYLINDER BLOCK .
