Chain Cover

2.0 L gasoline engine model

G16346059

Courtesy of SUBARU OF AMERICA, INC.

(1)	Oil level gauge
(2)	O-ring
(3)	Oil level gauge guide
(4)	O-ring
(5)	Front oil seal
(6)	Oil filler cap
(7)	Gasket
(8)	Chain cover
(9)	O-ring
(10)	O-ring

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: Ref. to MECHANICAL (H4DO (EXCEPT FOR HEV))>CHAIN COVER>INSTALLATION .

2.5 L model

G16346060

Courtesy of SUBARU OF AMERICA, INC.

(1)	Oil level gauge
(2)	O-ring
(3)	Oil level gauge guide
(4)	O-ring
(5)	Front oil seal
(6)	Oil filler cap
(7)	Gasket
(8)	Chain cover
(9)	O-ring
(10)	O-ring

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: Ref. to MECHANICAL (H4DO (EXCEPT FOR HEV))>CHAIN COVER>INSTALLATION .

Hybrid model

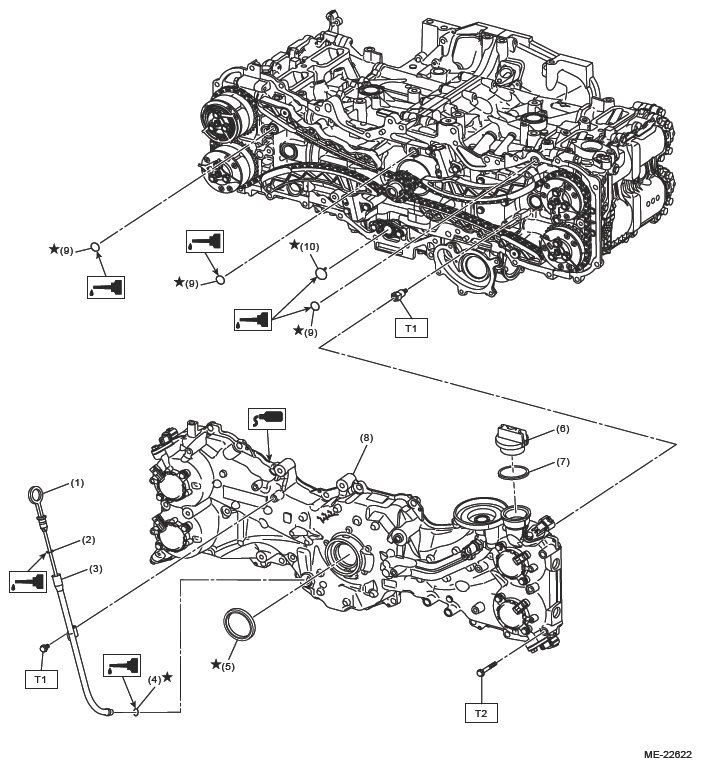

G16346061

Courtesy of SUBARU OF AMERICA, INC.

(1)	Oil level gauge
(2)	O-ring
(3)	Oil level gauge guide
(4)	O-ring
(5)	Front oil seal
(6)	Oil filler cap
(7)	Gasket
(8)	Chain cover
(9)	O-ring
(10)	O-ring

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: Ref. to MECHANICAL (H4DO (EXCEPT FOR HEV))>CHAIN COVER>INSTALLATION .
