Components With Torque Specifications

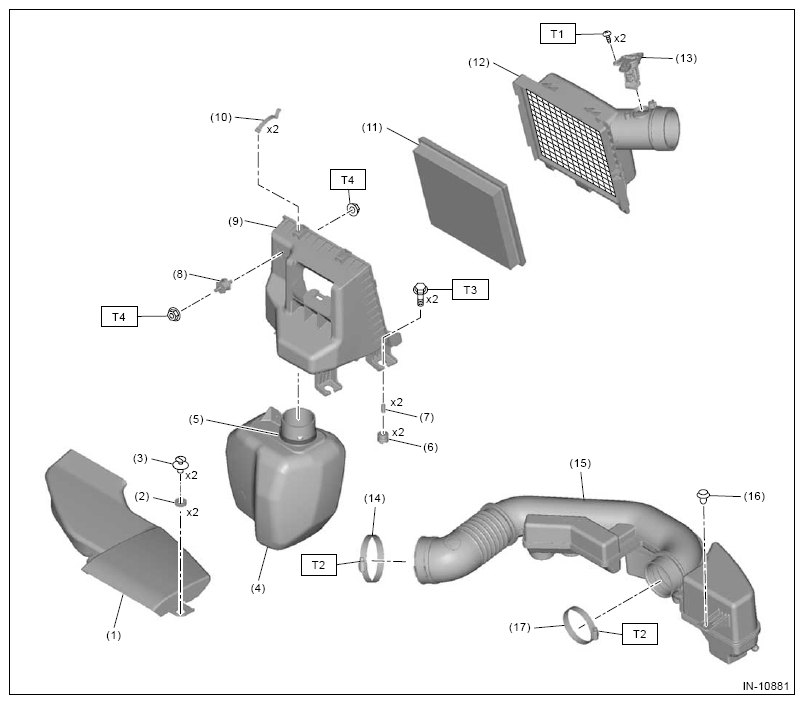

2.0 L gasoline engine model

G16340980

Courtesy of SUBARU OF AMERICA, INC.

(1)

AIR INTAKE DUCT

(2)

Cushion

(3)

Clip

(4)

Resonator chamber (with cushion) ⁽¹⁾

(5)

Cushion

(6)

Cushion

(7)

Spacer

(8)

Cushion

(9)

Air cleaner case (front) ⁽¹⁾

(10)

Clip

(11)

AIR CLEANER ELEMENT

(12)

Air cleaner case (rear)

(13)

Mass air flow and intake air temperature sensor

(14)

Clamp

(15)

AIR INTAKE BOOT

(16)

Clip

(17)

Clamp

⁽¹⁾	The air cleaner case (front) and the resonator chamber (with cushion) cannot be disassembled. If replacement is required, replace both with new parts.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1 (0.1, 0.7)

T2: 3 (0.3, 2.2)

T3: 6 (0.6, 4.4)

T4: 7.5 (0.8, 5.5)

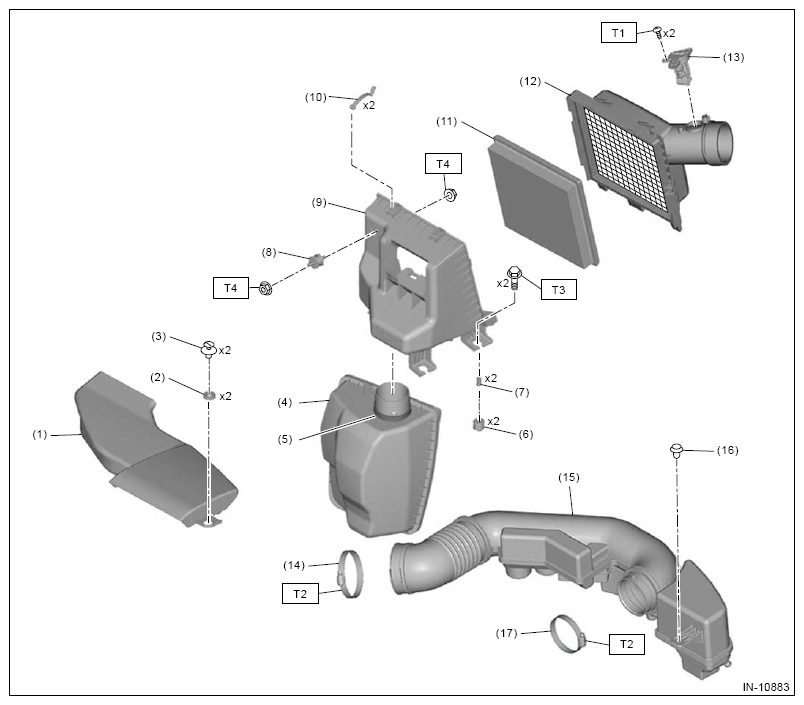

2.5 L model

G16340981

Courtesy of SUBARU OF AMERICA, INC.

(1)

AIR INTAKE DUCT

(2)

Cushion

(3)

Clip

(4)

Resonator chamber (with cushion) ⁽¹⁾

(5)

Cushion

(6)

Cushion

(7)

Spacer

(8)

Cushion

(9)

Air cleaner case (front) ⁽¹⁾

(10)

Clip

(11)

AIR CLEANER ELEMENT

(12)

Air cleaner case (rear)

(13)

Mass air flow and intake air temperature sensor

(14)

Clamp

(15)

AIR INTAKE BOOT

(16)

Clip

(17)

Clamp

⁽¹⁾	The air cleaner case (front) and the resonator chamber (with cushion) cannot be disassembled. If replacement is required, replace both with new parts.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1 (0.1, 0.7)

T2: 3 (0.3, 2.2)

T3: 6 (0.6, 4.4)

T4: 7.5 (0.8, 5.5)

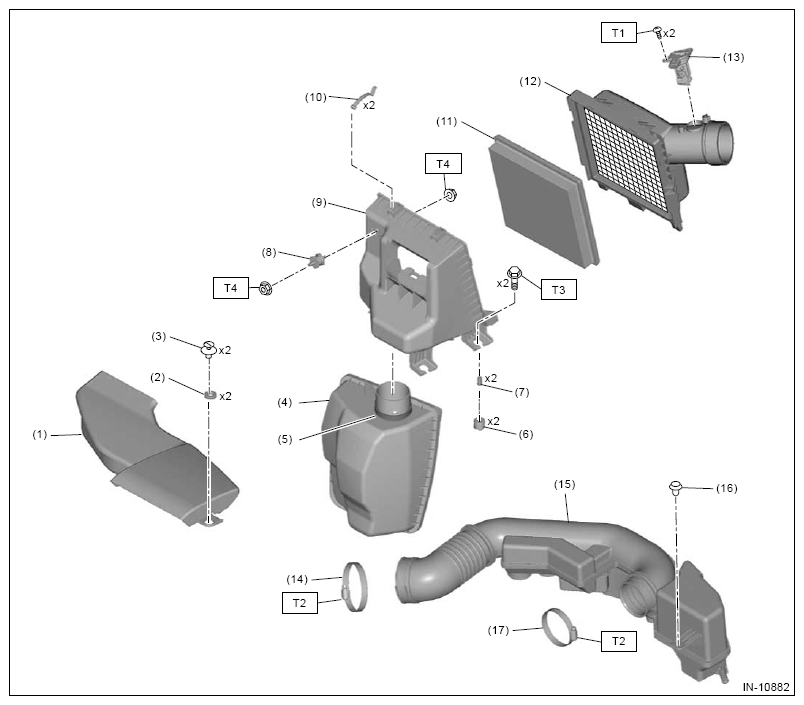

Hybrid model

G16340982

Courtesy of SUBARU OF AMERICA, INC.

(1)

AIR INTAKE DUCT

(2)

Cushion

(3)

Clip

(4)

Resonator chamber (with cushion) ⁽¹⁾

(5)

Cushion

(6)

Cushion

(7)

Spacer

(8)

Cushion

(9)

Air cleaner case (front) ⁽¹⁾

(10)

Clip

(11)

AIR CLEANER ELEMENT

(12)

Air cleaner case (rear)

(13)

Mass air flow and intake air temperature sensor

(14)

Clamp

(15)

AIR INTAKE BOOT

(16)

Clip

(17)

Clamp

⁽¹⁾	The air cleaner case (front) and the resonator chamber (with cushion) cannot be disassembled. If replacement is required, replace both with new parts.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1 (0.1, 0.7)

T2: 3 (0.3, 2.2)

T3: 6 (0.6, 4.4)

T4: 7.5 (0.8, 5.5)
