Oil Pipe

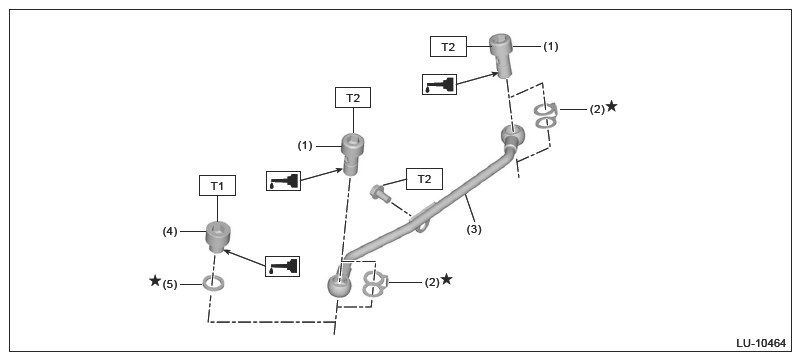

G16346825

Courtesy of SUBARU OF AMERICA, INC.

(1)	Union bolt (except for hybrid model)
(2)	Gasket (except for hybrid model)
(3)	Oil pipe (except for hybrid model)
(4)	Plug (hybrid model)
(5)	Gasket (hybrid model)

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2.0, 14.8)

T2: Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PIPE>INSTALLATION .
