Oil Pan

• 2.0 L gasoline engine model

  Courtesy of SUBARU OF AMERICA, INC.

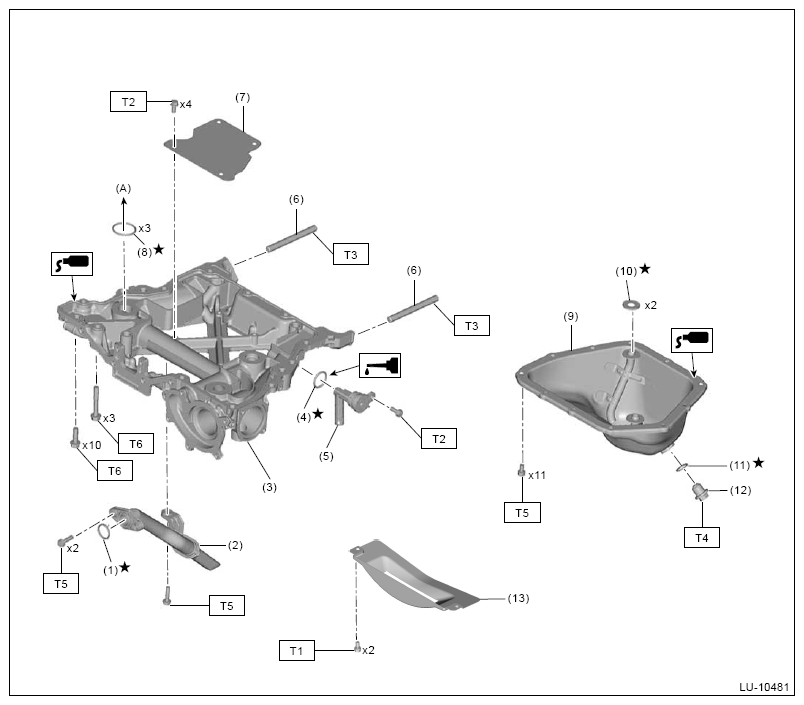

(A)	To engine unit
(1)	O-ring
(2)	Oil strainer
(3)	Oil pan upper
(4)	O-ring
(5)	Oil level switch
(6)	Stud bolt
(7)	Baffle plate
(8)	O-ring
(9)	Oil pan
(10)	Gasket
(11)	Gasket
(12)	Drain plug
(13)	Clutch housing cover (MT model)

Tightening torque: N-m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 6.4 (0.7, 4.7)

T3: 10 (1.0, 7.4)

T4: 41.7 (4.3, 30.8)

T5:  Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PAN>INSTALLATION>OIL PAN .

T6:  Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PAN>INSTALLATION>OIL PAN UPPER .

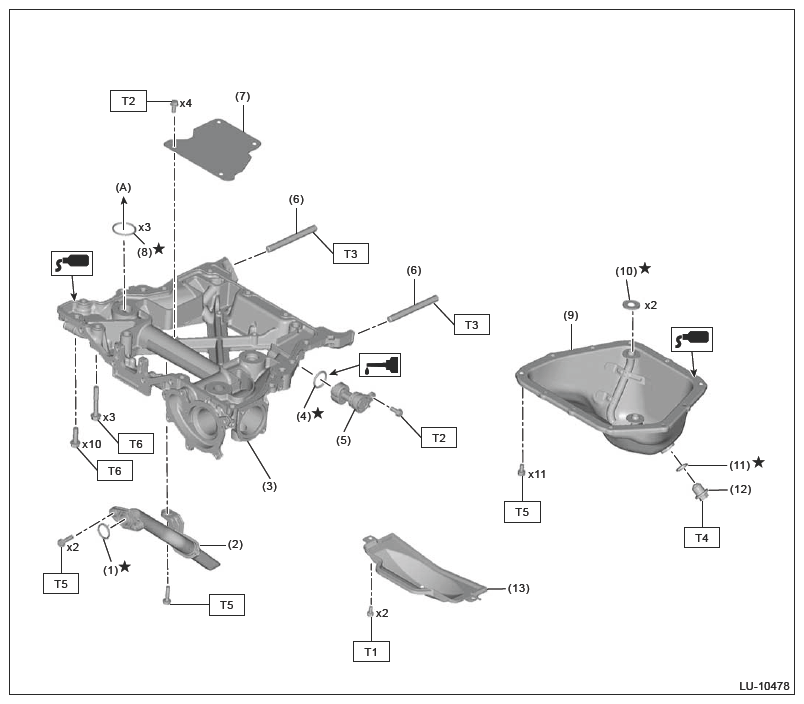

(A)	To engine unit
(1)	O-ring
(2)	Oil strainer
(3)	Oil pan upper
(4)	O-ring
(5)	Oil level switch
(6)	Stud bolt
(7)	Baffle plate
(8)	O-ring
(9)	Oil pan
(10)	Gasket
(11)	Gasket
(12)	Drain plug

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 10 (1.0, 7.4)

T3: 41.7 (4.3, 30.8)

T4:  Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PAN>INSTALLATION>OIL PAN .

T5:  Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PAN>INSTALLATION>OIL PAN UPPER .

• Hybrid model

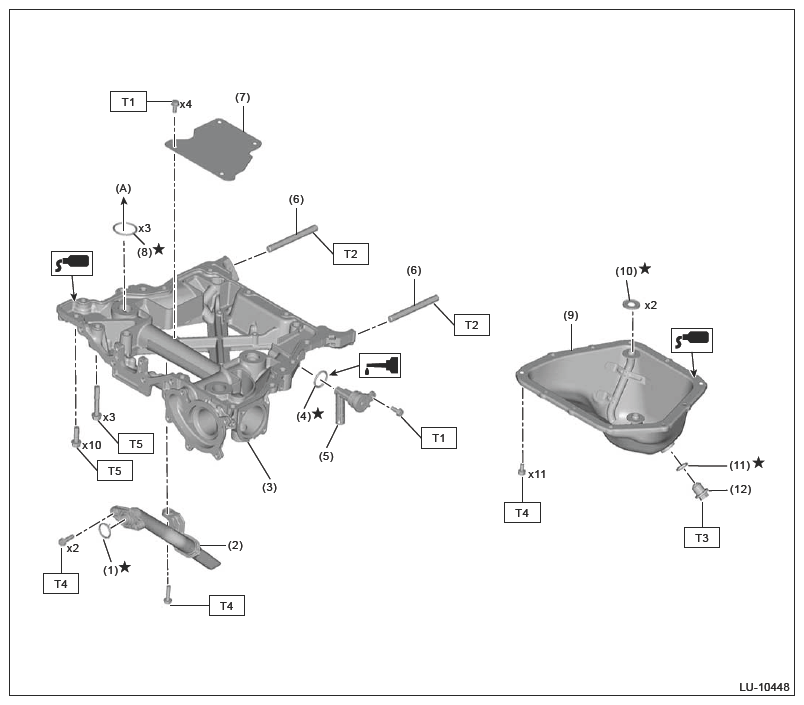

  Fig 2: Oil Pan Component Location - Hybrid Model

  Courtesy of SUBARU OF AMERICA, INC.

(A)	To engine unit
(1)	O-ring
(2)	Oil strainer
(3)	Oil pan upper
(4)	O-ring
(5)	Oil level switch
(6)	Stud bolt
(7)	Baffle plate
(8)	O-ring
(9)	Oil pan
(10)	Gasket
(11)	Gasket
(12)	Drain plug
(13)	Clutch housing cover

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.6 (0.6, 4.1)

T2: 6.4 (0.7, 4.7)

T3: 10 (1.0, 7.4)

T4: 41.7 (4.3, 30.8)

T5:  Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PAN>INSTALLATION>OIL PAN .

T6:  Ref. to LUBRICATION (H4DO (EXCEPT FOR HEV))>OIL PAN>INSTALLATION>OIL PAN UPPER .
