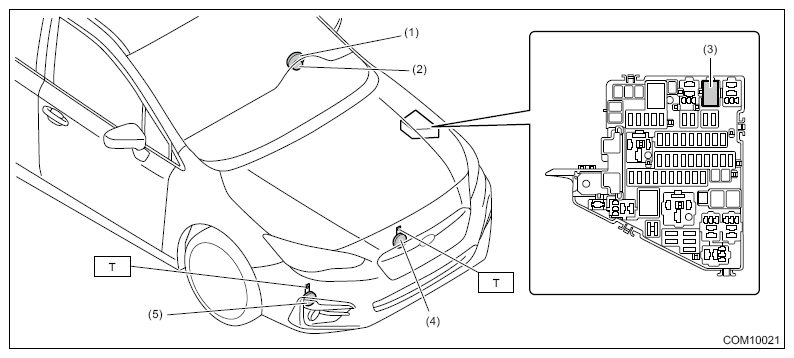

Components With Torque Specifications
 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
Horn switch (driver's airbag module ASSY) |
| (2) |
Steering roll connector |
| (3) |
Horn relay |
| (4) |
Horn ASSY - Hi |
| (5) |
Horn ASSY - Lo |
Tightening torque: N.m (kgf-m, ft-lb)
T: 18 (1.8, 13.3)
