Rear View Mirror

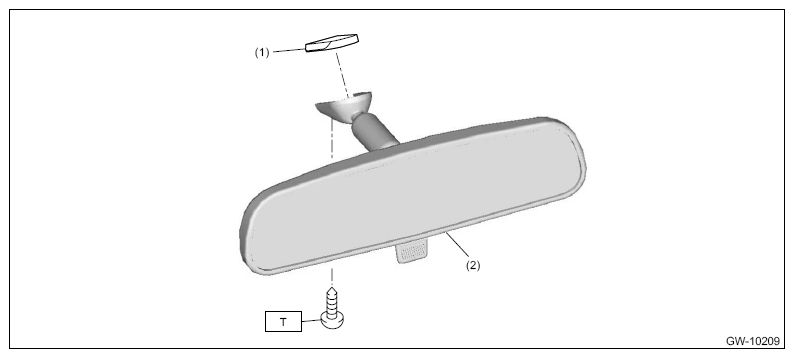

- Impreza model
| (1) | Base - inner mirror |
| (2) | Mirror ASSY - inner rearview |
Tightening torque: N.m (kgf-m, ft-lb)
T: 2 (0.2, 1.5)
NOTE:
Base - inner mirror cannot be removed from the glass - front window.
- Crosstrek model
| (1) | Base - inner mirror |
| (2) | Mirror ASSY - inner rearview |
NOTE:
Base - inner mirror cannot be removed from the glass - front window.
