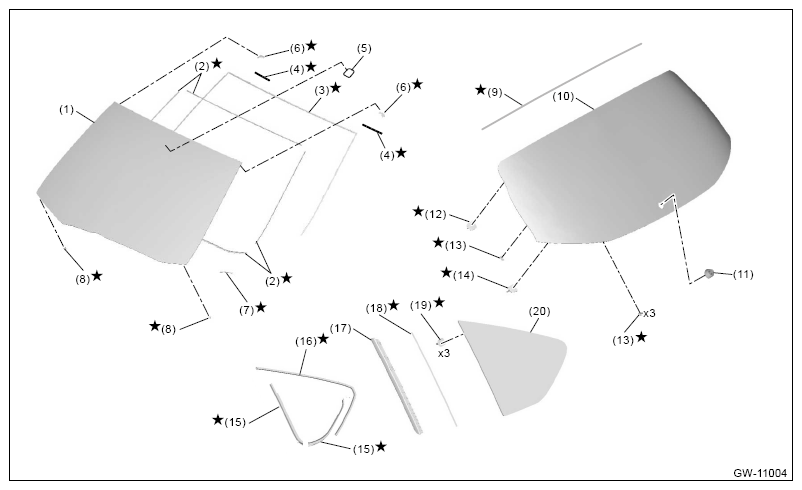

Fixed Glass (5 Door Model)
| (1) | Glass - front window |
| (2) | Dam rubber - front |
| (3) | Molding - front window |
| (4) | Seal - upper |
| (5) | Base - inner mirror |
| (6) | Locating pin - front window |
| (7) | Dam rubber - lower VIN |
| (8) | Seal - lower |
| (9) | Dam rubber - rear gate |
| (10) | Glass - rear gate |
| (11) | Cap - pivot |
| (12) | Holder - rear gate |
| (13) | Spacer - rear gate |
| (14) | Locating pin - rear gate |
| (15) | Dam rubber B - rear quarter |
| (16) | Dam rubber A - rear quarter |
| (17) | Molding - rear quarter |
| (18) | Molding tape - rear quarter |
| (19) | Locating pin - rear quarter |
| (20) | Glass - rear quarter |
NOTE:
Base - inner mirror cannot be removed from the glass - front window.
