Security System
- 4 door model

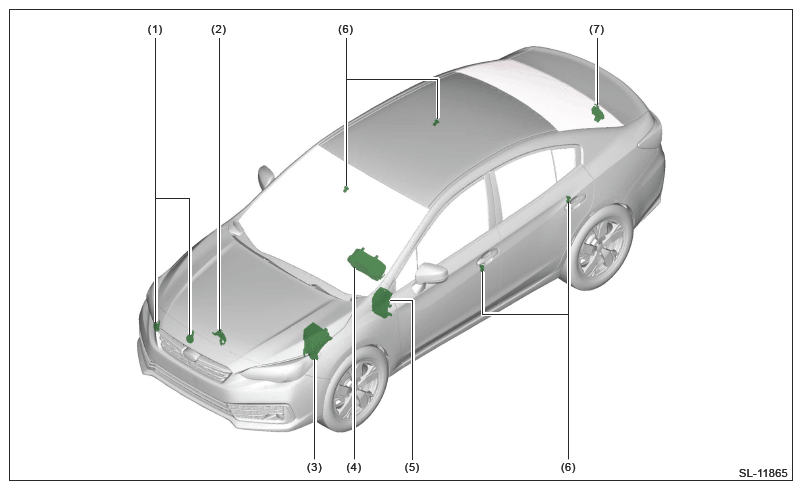

(1) Horn (2) Hood switch (3) Horn relay (in main fuse box) (4) Security indicator light (in combination meter) (5) Body integrated unit (6) Door switch (7) Trunk lid latch switch NOTE: For the location of hazard lights, refer to "General Description" in "LIGHTING SYSTEM" service information. Ref. to LIGHTING SYSTEM>GENERAL DESCRIPTION>SPECIFICATION . - 5 door model (except for hybrid)

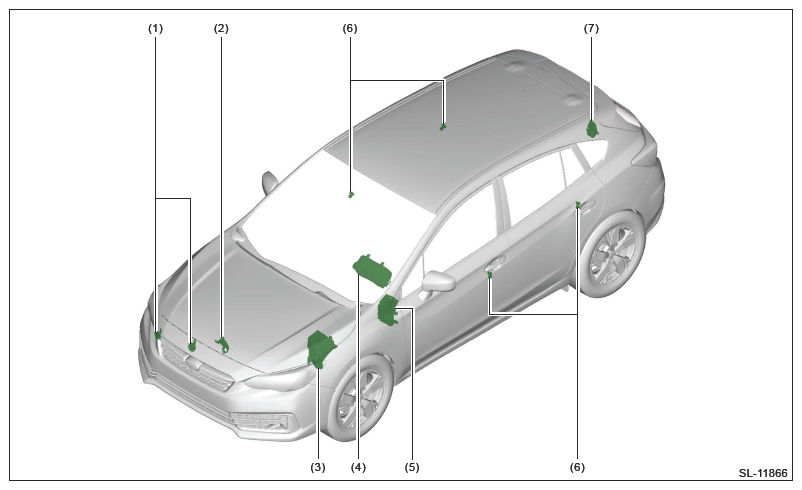

(1) Horn (2) Hood switch (3) Horn relay (in main fuse box) (4) Security indicator light (in combination meter) (5) Body integrated unit (6) Door switch (7) Rear gate latch switch NOTE: For the location of hazard lights, refer to "General Description" in "LIGHTING SYSTEM" service information. Ref. to LIGHTING SYSTEM>GENERAL DESCRIPTION>SPECIFICATION . - 5 door model (hybrid)

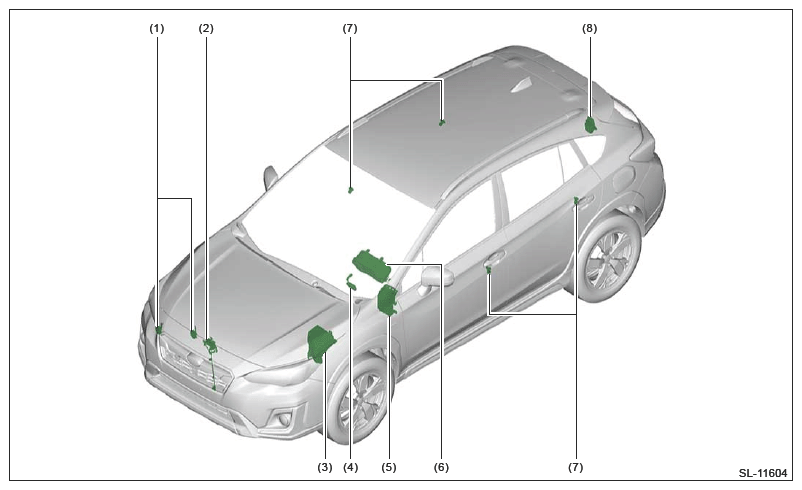

| (1) | Horn |
| (2) | Hood switch |
| (3) | Horn relay (in main fuse box) |
| (4) | Central Gateway Control Module |
| (5) | Body integrated unit |
| (6) | Security indicator light (in combination meter) |
| (7) | Door switch |
| (8) | Rear gate latch switch |
NOTE:
For the location of hazard lights, refer to "General Description" in "LIGHTING SYSTEM" service information. Ref. to LIGHTING SYSTEM>GENERAL DESCRIPTION>SPECIFICATION
.
