Fuel Lid

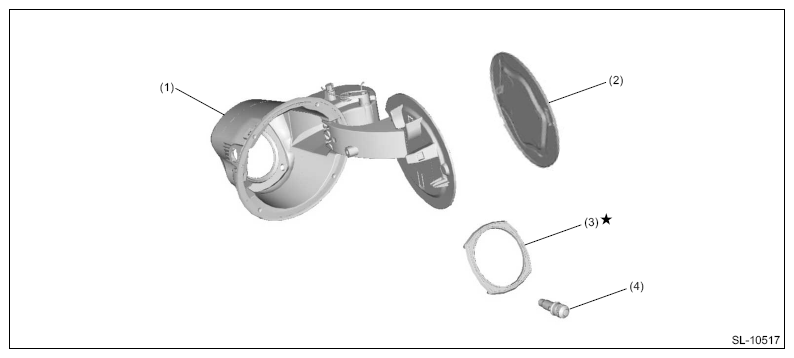

• Except for hybrid model

  Courtesy of SUBARU OF AMERICA, INC.

  (1)	Saucer - COMPL
  (2)	Flap - COMPL fuel
  (3)	Ring clip
  (4)	Lifter

• Hybrid model

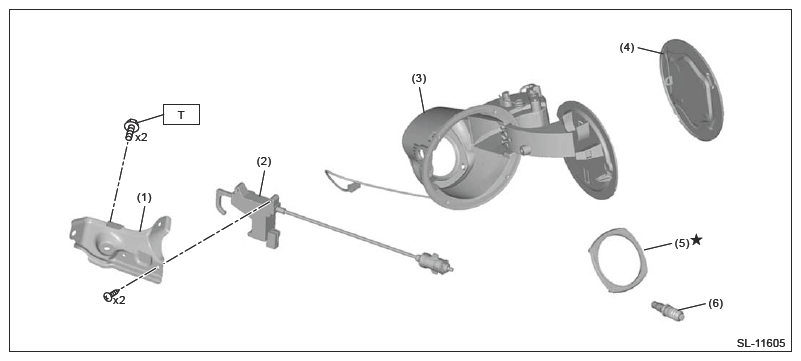

Fig 1: Fuel Lid Components Location - Hybrid Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
