Front Hood Lock

• Impreza model

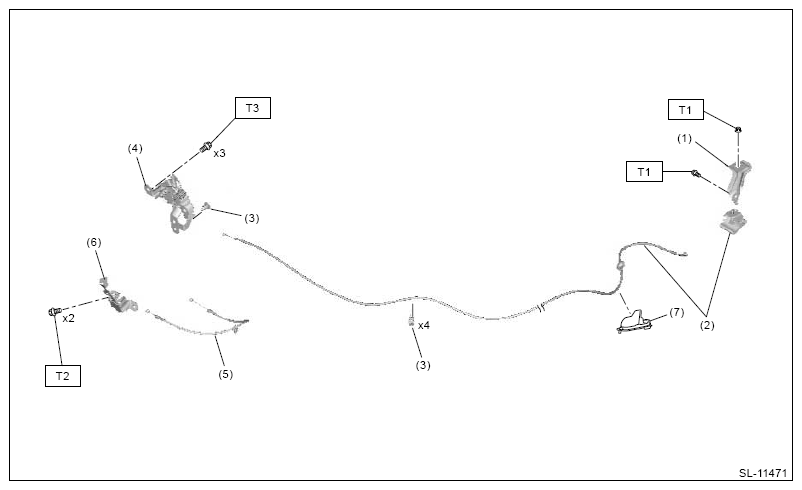

  Fig 1: Front Hood Lock Components Location - Impreza Model

  Courtesy of SUBARU OF AMERICA, INC.

  (1)	Bracket - opener handle
  (2)	Cable - front hood
  (3)	Clip
  (4)	Lock ASSY - front hood
  (5)	Cable - safety
  (6)	Lever ASSY - safety
  (7)	Protector - cable OUT

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 7.5 (0.8, 5.5)

  T2: 18 (1.8, 13.3)

  T3: 33 (3.4, 24.3)

• Crosstrek model

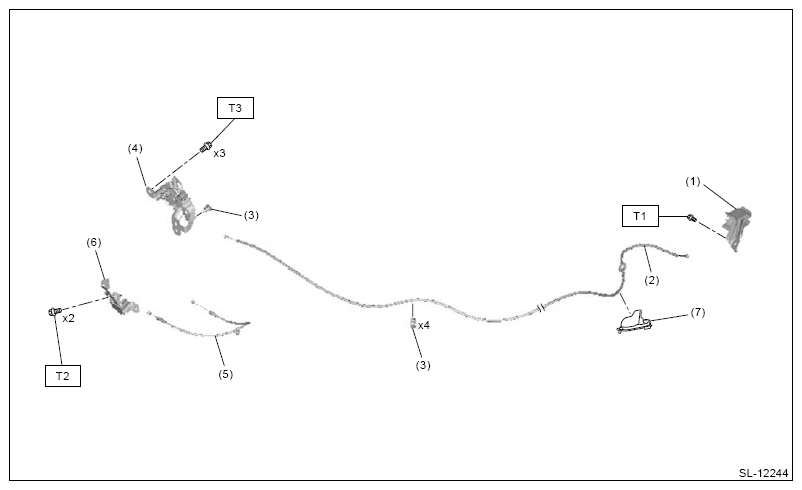

Fig 2: Front Hood Lock Components Location - Crosstrek Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 18 (1.8, 13.3)

T3: 33 (3.4, 24.3)
