Door Lock Assembly

Front

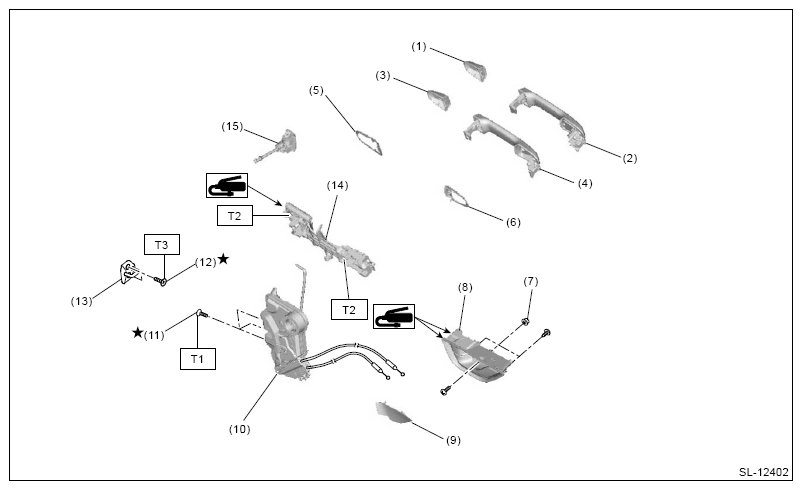

Fig 1: Door Lock Assembly Components Location - Front

Courtesy of SUBARU OF AMERICA, INC.

(1)	Cover - handle front outer (passenger's seat)
(2)	Handle - door outer (model with keyless access with push button start)
(3)	Cover - handle front outer (driver's seat)
(4)	Handle - door outer (keyless entry model)
(5)	Spacer - door handle outer B
(6)	Spacer - door handle outer A
(7)	Grommet - screw
(8)	Remote ASSY - door
(9)	Cover - remote door
(10)	Latch & actuator ASSY - front
(11)	TORX® bolt
(12)	Screw
(13)	Striker - door
(14)	Frame ASSY - front door outer
(15)	Key lock - door (driver's seat only)

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.5 (0.7, 4.8)

T2: 7.5 (0.8, 5.5)

T3: 18 (1.8, 13.3)

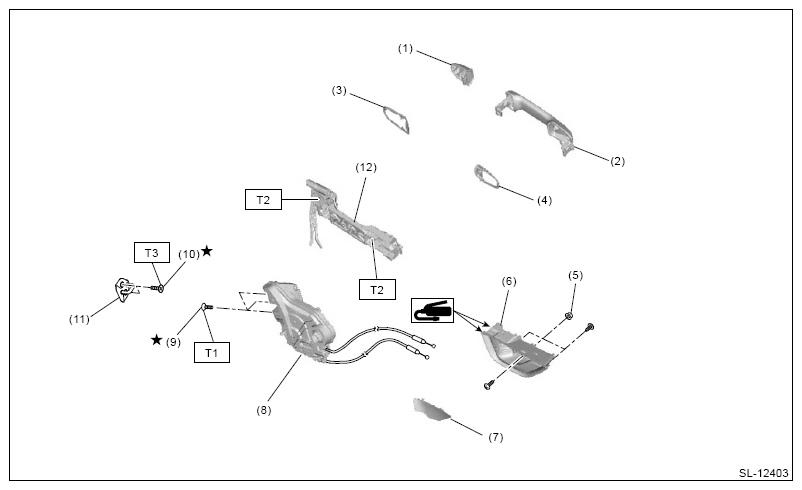

Fig 2: Door Lock Assembly Components Location - Rear

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.5 (0.7, 4.8)

T2: 7.5 (0.8, 5.5)

T3: 18 (1.8, 13.3)
