Steering Lock Control Module: Replacement

CAUTION:
  • When the control module related to immobilizer has been replaced, be sure to perform the registration of immobilizer system. For detailed operation procedure, refer to "Type H" described in "REGISTRATION MANUAL FOR IMMOBILIZER".
  • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover LWR driver INN and cover LWR driver OUT. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  3. Remove the knee airbag module. Ref. to AIRBAG SYSTEM>KNEE AIRBAG MODULE>REMOVAL .
  4. Remove the driver's airbag module. Ref. to AIRBAG SYSTEM>DRIVER'S AIRBAG MODULE>REMOVAL .
  5. Remove the steering wheel assembly. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING WHEEL>REMOVAL .
  6. Remove the column assembly steering. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>REMOVAL .
  7. Remove the steering lock Control Module.
    1. Secure the column assembly steering in a vise.

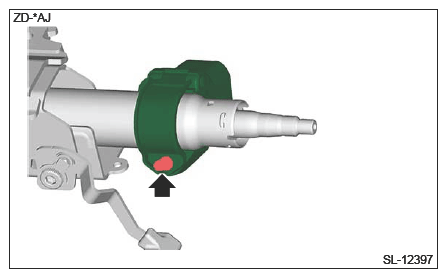

    2. Use the reverse tap and drill to remove the set bolt, and remove the steering lock Control Module.
    CAUTION: Do not apply any impact to the set bolt by a chisel or punch. Doing so may damage the steering lock Control Module.
    G16527189Courtesy of SUBARU OF AMERICA, INC.
  8. Install the steering lock Control Module.
    1. Secure the steering lock Control Module to the column assembly steering.

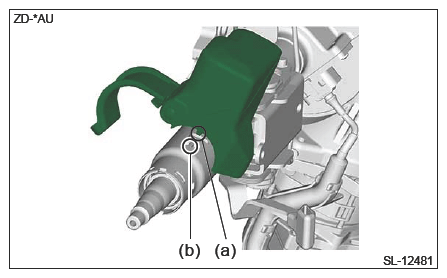

      NOTE: When installing the steering lock Control Module, confirm that the fitting portion of the steering lock Control Module is properly engaged with the opening portion of the column shaft.
      G16527190Courtesy of SUBARU OF AMERICA, INC.
      (a) Fitting portion
      (b) Opening portion
    2. Use new set bolts. Tighten the bolt until the bolt head is broken (bolt head wrenched off).
  9. Install the column assembly steering. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>INSTALLATION .
  10. Install the steering wheel assembly. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING WHEEL>INSTALLATION .
  11. Install the driver's airbag module. Ref. to AIRBAG SYSTEM>DRIVER'S AIRBAG MODULE>INSTALLATION .
  12. Install the knee airbag module. Ref. to AIRBAG SYSTEM>KNEE AIRBAG MODULE>INSTALLATION .
  13. Install the cover LWR driver OUT and cover LWR driver INN. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>INSTALLATION .
  14. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
