Before Overhaul

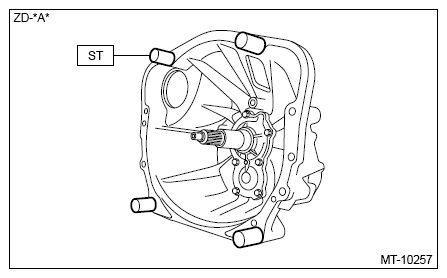

  1. Attach the ST.

    Preparation tool:

    ST: STAND ASSY (18632AA000)

    G16526162Courtesy of SUBARU OF AMERICA, INC.

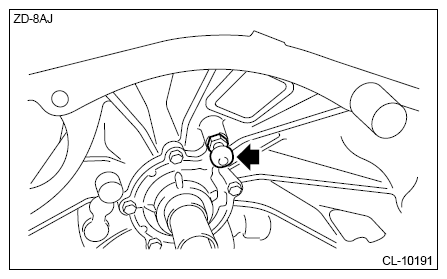

  2. Remove the pivot.
    G16526163Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the filler plug (A) and drain plug (B).
    G16526105Courtesy of SUBARU OF AMERICA, INC.
  4. Place the transmission body.
    NOTE: Prepare a container for draining of oil, because any transmission gear oil remaining inside the transmission body may flow out from the input shaft portion.
