Control Valve Body Harness

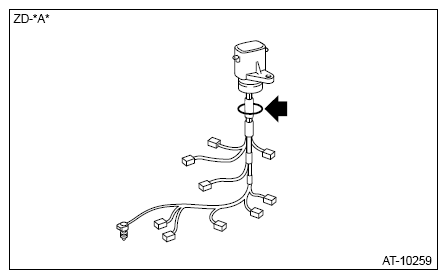

Install a new O-ring to the control valve body harness.
NOTE: Apply ATF to the O-ring.

Courtesy of SUBARU OF AMERICA, INC.

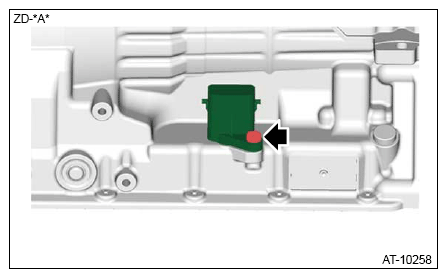

Install the control valve body harness to the transmission case.
Tightening torque:

5.4 N.m (0.6 kgf-m, 4.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Attach the control valve body harness to the control valve body.

Connect the connector to each solenoid.

Courtesy of SUBARU OF AMERICA, INC.

Install the control valve body harness to the harness clamp (A) and install the bolt.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Install the lock plate and the oil temperature sensor.
Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Install the oil pan. Ref. to AUTOMATIC TRANSMISSION>OIL PAN>INSTALLATION .

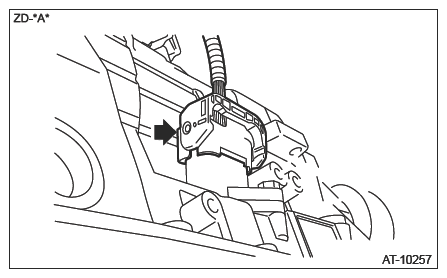

Connect the transmission harness connector.

Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission body from the pipe or tube with approx. 125 mm (4.9 in) in inner diameter.
CAUTION: Be careful not to tip over the transmission body.

Courtesy of SUBARU OF AMERICA, INC.
Attach the ST to the transmission body.
Preparation tool:

ST: STAND ASSY (18632AA010)
1. Attach the ST to the transmission body with a rope, etc.
Courtesy of SUBARU OF AMERICA, INC.
Install the extension case. Ref. to AUTOMATIC TRANSMISSION>EXTENSION CASE>INSTALLATION .
Install the transmission body. Ref. to AUTOMATIC TRANSMISSION>TRANSMISSION ASSEMBLY>INSTALLATION .
