No. 3 Brake Cylinder: Installation

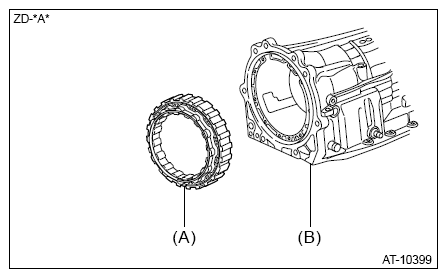

Install the No. 3 brake cylinder.

Courtesy of SUBARU OF AMERICA, INC.

(A)	No. 3 brake cylinder
(B)	Transmission case

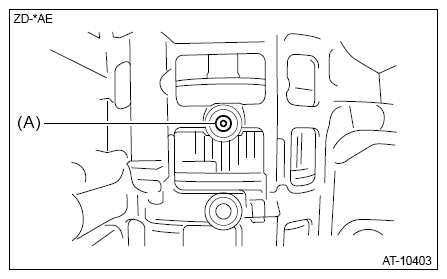

Check that the oil pressure apply hole of the No. 3 brake cylinder matches the oil pressure apply hole (A) of the transmission case.

Courtesy of SUBARU OF AMERICA, INC.

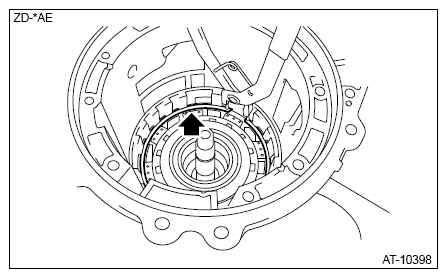

Install the snap ring.
NOTE: Face the snap ring end towards the control valve side.

Courtesy of SUBARU OF AMERICA, INC.

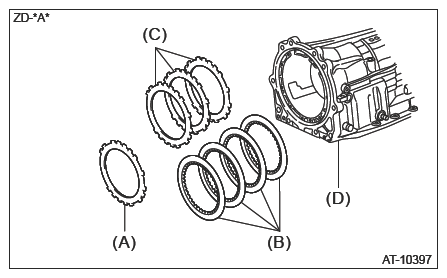

Install the No. 3 brake flange, No. 3 brake discs, and No. 3 brake plates.

NOTE: When replacing with new No. 3 brake discs, soak them in the ATF for 15 minutes.

Courtesy of SUBARU OF AMERICA, INC.

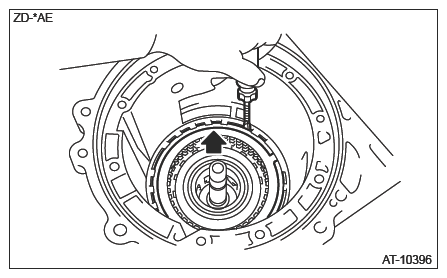

Using a flat tip screwdriver wrapped with protection tape, install the snap ring.
CAUTION: Be careful not to damage the transmission case.

Courtesy of SUBARU OF AMERICA, INC.
Install the clutch drum and input shaft. Ref. to AUTOMATIC TRANSMISSION>CLUTCH DRUM AND INPUT SHAFT>INSTALLATION .
