No. 3 Brake Cylinder: Assembly

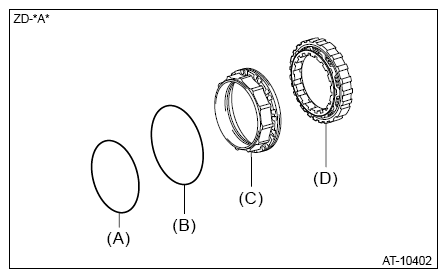

Install the No. 3 brake piston and a new O-ring.

CAUTION: Be careful not to damage the O-ring.

NOTE: Apply ATF to the O-ring.

G16525965

Courtesy of SUBARU OF AMERICA, INC.

(A)	O-ring
(B)	O-ring
(C)	No. 3 brake piston
(D)	No. 3 brake cylinder

Set the No. 3 brake piston return spring to No. 3 brake piston.

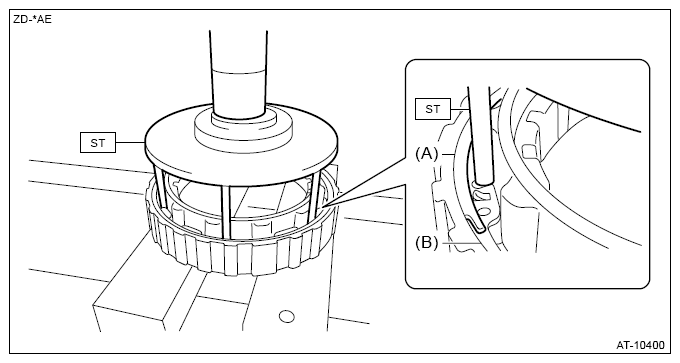

Compress the No. 3 brake piston return spring (B) using the ST and a press to install the snap ring (A).
CAUTION: Do not let the foot of ST stand on the protrusion of the No. 3 brake piston return spring.

Preparation tool:

ST: compressor special tool (18762AA030)

G16525962

Courtesy of SUBARU OF AMERICA, INC.
