No. 2 Brake Cylinder: Disassembly

  1. Remove the No. 2 brake piston and the O-ring.

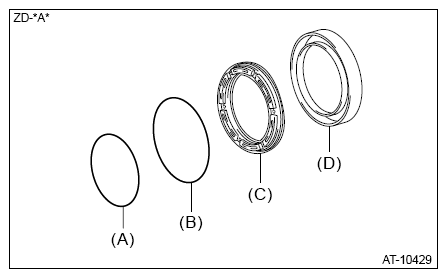

G16526014Courtesy of SUBARU OF AMERICA, INC.
(A) O-ring
(B) O-ring
(C) No. 2 brake piston
(D) No. 2 brake cylinder
