No. 1 Brake Cylinder: Disassembly

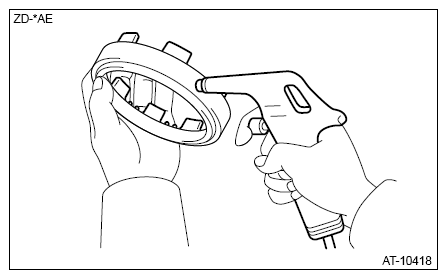

Blow compressed air through the hole shown in the figure and remove the No. 1 brake cylinder.
CAUTION: If the No. 1 brake piston cannot be removed by the compressed air, use pliers, etc. to remove it.
Be careful not to damage the No. 1 brake piston.

NOTE: Blow compressed air of 392 kPa (4.0 kgf/cm² , 56.8 psi).

Courtesy of SUBARU OF AMERICA, INC.
Remove the No. 1 brake piston and the O-ring.

G16525997

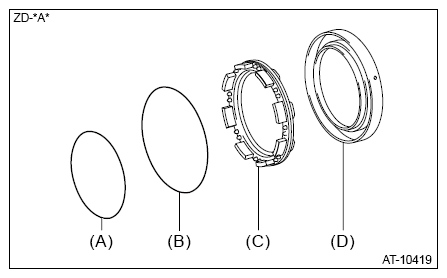

Courtesy of SUBARU OF AMERICA, INC.

(A)	O-ring
(B)	O-ring
(C)	No. 1 brake piston
(D)	No. 1 brake cylinder
