No. 3 Brake Cylinder

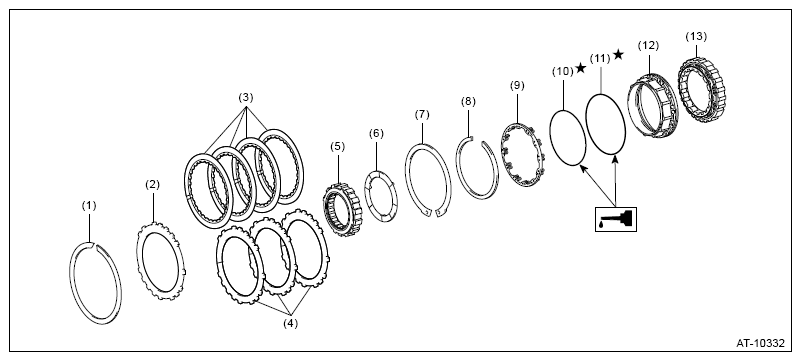

G16525531Courtesy of SUBARU OF AMERICA, INC.
(1) Snap ring
(2) No. 3 brake flange
(3) No. 3 brake disc
(4) No. 3 brake plate
(5) One-way clutch
(6) No. 1 planetary carrier thrust washer
(7) Snap ring
(8) Snap ring
(9) No. 3 brake piston return spring
(10) O-ring
(11) O-ring
(12) No. 3 brake piston
(13) No. 3 brake cylinder
