ATF Cooler (With Warmer Function): Inspection

1. Check for oil leaks.
2. Check for leaks.
3. Check that there is no deformation, cracks or other damages.
4. ATF cooler (with warmer feature) and oil pipeline cleaning and check

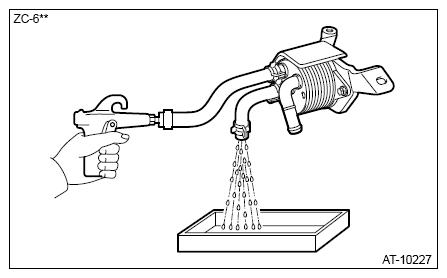

   1. Clean by blowing the compressed air from the inlet hose.
      NOTE: Blow compressed air of 196 kPa (2.0 kgf/cm² , 28.4 psi).
   2. If ATF or the engine coolant is cloudy, check the ATF cooler (with warmer feature).

Courtesy of SUBARU OF AMERICA, INC.
