Automatic Transaxle System (Diagnostics): Electrical Component Location: Location
| (1) | TCM |

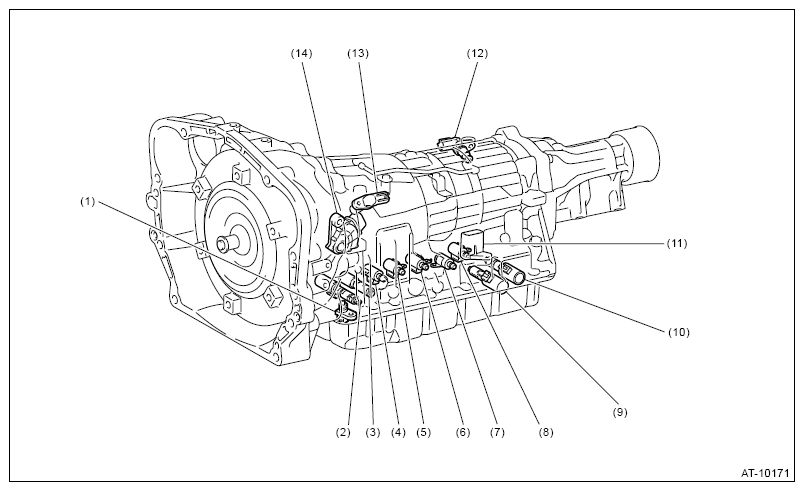

| (1) | ATF temperature sensor |
| (2) | Pressure solenoid D (SLT) |
| (3) | Pressure solenoid A (SL1) |
| (4) | Shift solenoid E (SR) |
| (5) | Shift solenoid A (S1) |
| (6) | Shift solenoid D (S4) |
| (7) | Shift solenoid B (S2) |
| (8) | Shift solenoid C (S3) |
| (9) | Pressure solenoid B (SL2) |
| (10) | Torque converter clutch pressure solenoid (SLU) |
| (11) | Control valve body harness |
| (12) | Output revolution sensor |
| (13) | Turbine speed sensor |
| (14) | Inhibitor switch |
