Trailing Link: Removal

  1. Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  2. Remove the bolts, and then remove the bracket cable guide.
    G16524856Courtesy of SUBARU OF AMERICA, INC.

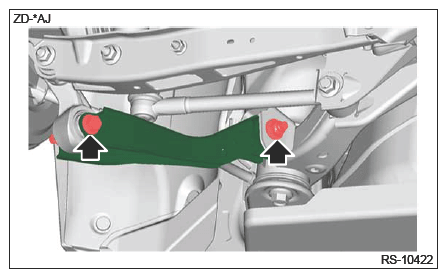

  3. Remove the bolts and nuts, and then remove the trailing link assembly rear.
G16524857Courtesy of SUBARU OF AMERICA, INC.
