Stabilizer Bushing

CAUTION:

Install the rubber bushing stabilizer rear so that the slit does not shift to the right or left.

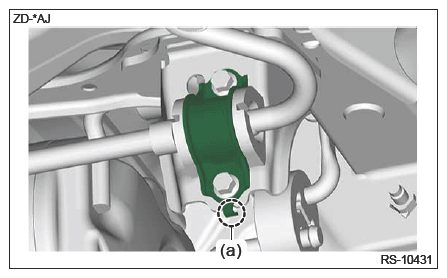

Install so that the claw section (a) of the clamp stabilizer faces the bottom of the vehicle.

Courtesy of SUBARU OF AMERICA, INC.

Before installation, check the rubber bushing stabilizer rear for abnormal cracks, fatigue or damage.
Install the rubber bushing stabilizer rear.
Install the clamp stabilizer.
Tightening torque:

30 N.m (3.1 kgf-m, 22.1 ft-lb)
