Suspension Height

Park the vehicle on a level surface.
Empty the vehicle so that it is at "curb weight".
NOTE: Unload any cargo, load the jack, service tools, spare tire, or tire puncture repair kit, and fill up the fuel tank.
Set the steering wheel in a straight-ahead position, and stabilize the suspension by moving the vehicle in a straight line for 5 m (16 ft) or more.

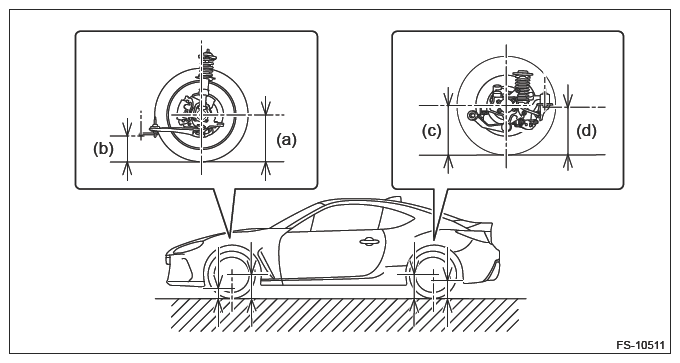

Measure the distance (a) from the center of front wheel to the ground surface.
Measure the distance (b) from the end of mounting bolt for the plate arm front to the ground surface.
Measure the distance (c) from the center of rear wheel to the ground surface.
Measure the distances (d) from the end of mounting bolt for the support sub frame rear to the ground surface.

Calculate the suspension height using the following calculation:

(a) - (b) = Front suspension height

Courtesy of SUBARU OF AMERICA, INC.

Suspension height specification mm (in) (Tolerance: ^{+24 mm}_{-12 mm} (^{+0.94 in}_{-0.47 in} ))
Front (a) - (b)	Rear (c) - (d)
133 (5.24)	3 (0.12)
