Rubber Bushing Arm Front

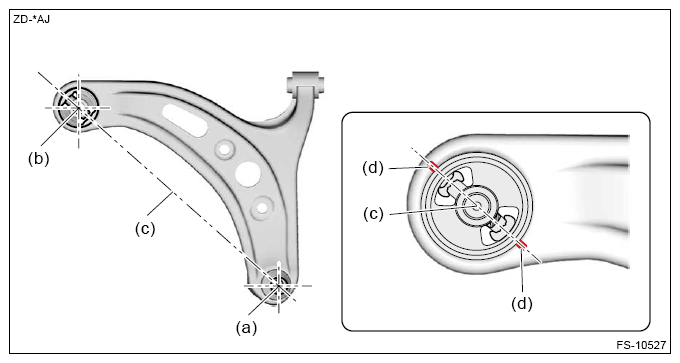

  1. Put alignment marks (d) on the arm assembly front, based on an extended line (c) connecting the center of ball joint (a) and the center of rubber busing arm front (b).
    G16524802Courtesy of SUBARU OF AMERICA, INC.

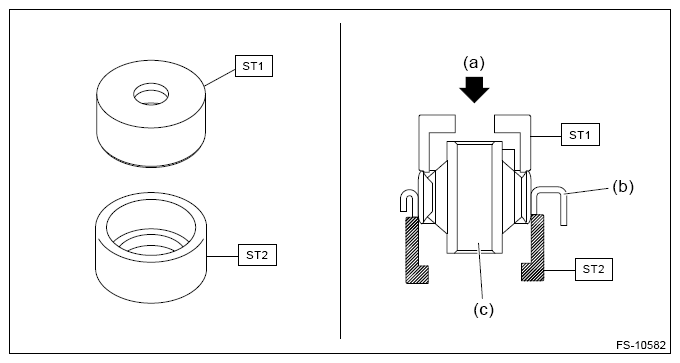

  2. Remove the rubber bushing arm front using ST1 and ST2.

    Preparation tool:

    ST1: REMOVER (20299AG000)

    ST2: BASE (20299AG010)

    G16524803Courtesy of SUBARU OF AMERICA, INC.
    (a) Press
    (b) Arm ASSY front
    (c) Rubber bushing arm front
