Dust Cover

  1. Remove the dust cover.
    1. Clean the dirt and foreign matter adhered around the dust cover and its surface.

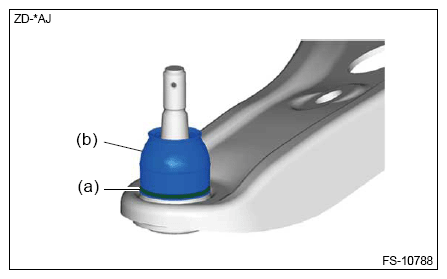

    2. Remove the clip (a) from the arm assembly front dust cover.
    3. Remove the dust cover (b).
G16524805Courtesy of SUBARU OF AMERICA, INC.
