Rubber Bushing Arm Front

  1. Before installation, inspect the following items and replace any faulty part with a new one.
    • Check the arm assembly front for damage or cracks.
    • Check the bushing for abnormal cracks, damage or fatigue.
    • Check the boot on the ball joint for damage.

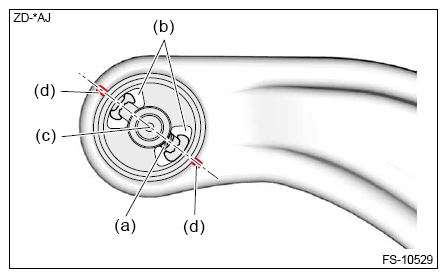

  2. Place the protrusion (a) of recess section to the ball joint side of the arm assembly front, and then align the line (c) extending from the center of recess section with the alignment marks (d).
    G16524806Courtesy of SUBARU OF AMERICA, INC.
    (a) Protrusion of the recess section
    (b) Recess section
    (c) Line extending from the center of recess section
    (d) Alignment mark

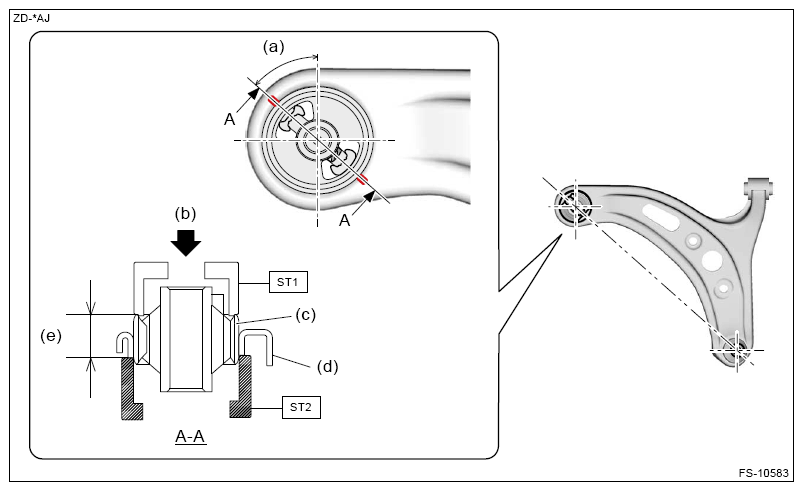

  3. Press-fit the rubber bushing arm front using ST1 and ST2.

    Preparation tool:

    ST1: REMOVER (20299AG000)

    ST2: BASE (20299AG010)

    G16524807Courtesy of SUBARU OF AMERICA, INC.
    (a) 44° - 50°
    (b) Press
    (c) Rubber bushing arm front
    (d) Arm ASSY front
    (e) 25.0 - 26.0 mm (0.98 - 1.02 in)
