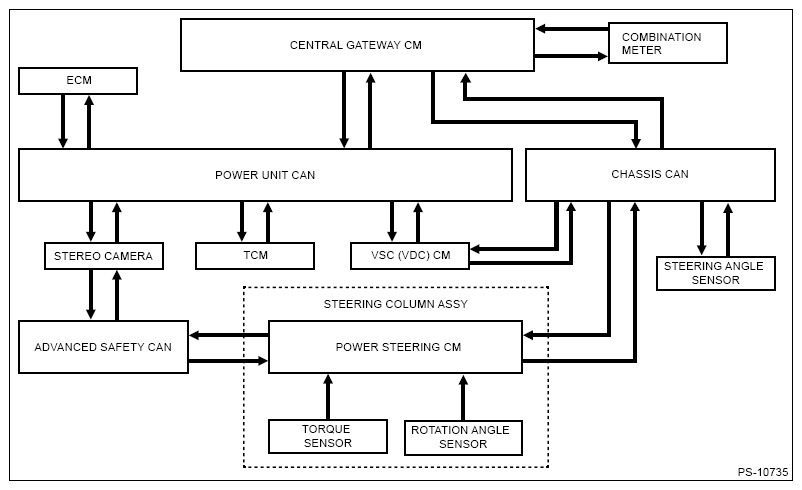

System Block Diagram

Courtesy of SUBARU OF AMERICA, INC.

The assist control is performed based on the engine speed information from the ECM, the vehicle speed information from the VSC (VDC) Control Module, and the sensor signals in the power steering Control Module (torque sensor, rotation angle sensor).
