Rear Differential

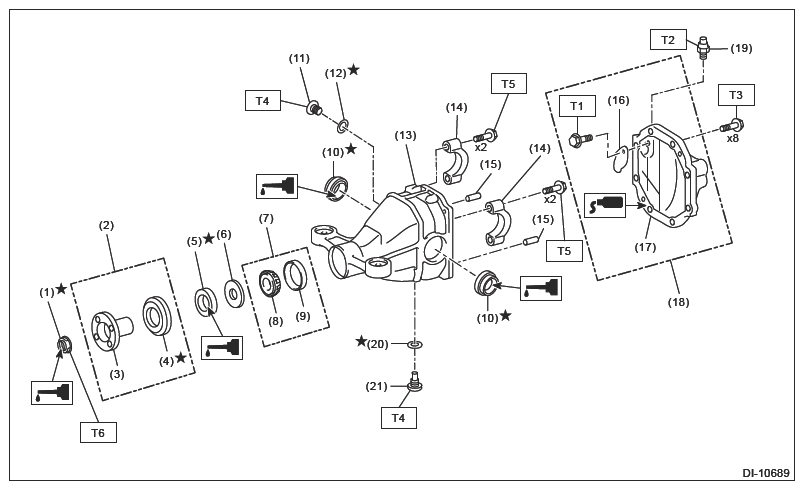

Fig 1: Rear Differential Components Location

Courtesy of SUBARU OF AMERICA, INC.

(1)

Drive pinion nut

(2)

Companion flange set

(3)

Companion flange

(4)

Rear differential dust deflector

(5)

Rear differential carrier oil seal

(6)

Drive pinion oil slinger

(7)

Drive pinion tapered roller bearing FR

(8)

Drive pinion tapered roller bearing FR (inner race)

(9)

Drive pinion tapered roller bearing FR (outer race)

(10)

Rear differential side gear shaft oil seal

(11)

Filler plug

(12)

Gasket

(13)

Differential carrier⁽¹⁾

(14)

Bearing cap⁽¹⁾

(15)

Straight pin

(16)

Breather plug oil deflector

(17)

Differential carrier cover

(18)

Rear differential carrier cover ASSY

(19)

Rear differential breather plug

(20)

Gasket

(21)

Drain plug

⁽¹⁾	The differential carrier and the bearing cap are set parts.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 21 (2.1, 15.5)

T3: 47 (4.8, 34.7)

T4: 49 (5.0, 36.1)

T5: 85 (8.7, 62.7)

T6: Ref. to DIFFERENTIALS>REAR DIFFERENTIAL>ASSEMBLY .
