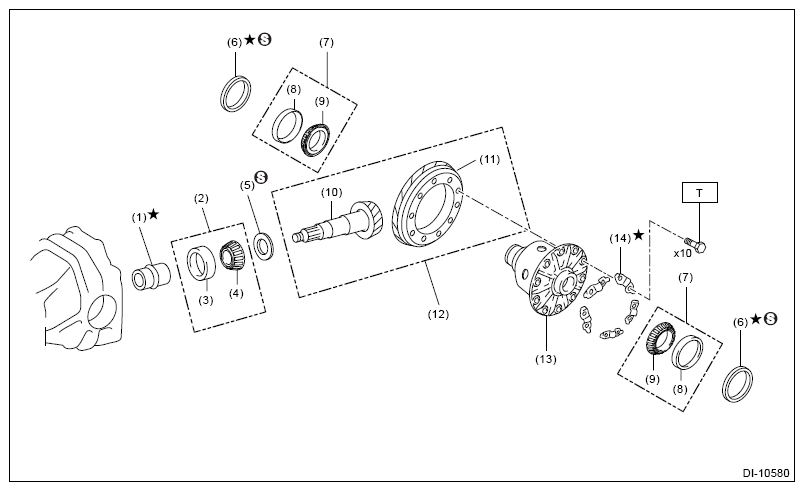

Rear Differential System
| (1) | Drive pinion bearing spacer |
| (2) | Drive pinion tapered roller bearing RR |
| (3) | Drive pinion tapered roller bearing RR (outer race) |
| (4) | Drive pinion tapered roller bearing RR (inner race) |
| (5) | Drive pinion washer |
| (6) | Side gear shaft washer |
| (7) | Case bearing |
| (8) | Case bearing (outer race) |
| (9) | Case bearing (inner race) |
| (10) | Drive pinion |
| (11) | Ring gear |
| (12) | Final gear set |
| (13) | Differential case |
| (14) | Lock plate |
Tightening torque: N.m (kgf-m, ft-lb)
T: 97 (9.9, 71.5)
